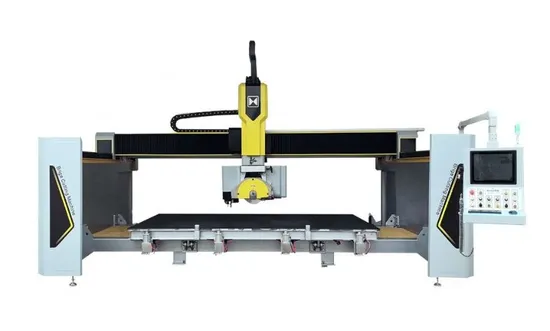

Automatic CNC Marble Cutting Machine for Sale

Product Description

Product Parameters

Model	ZLBS-500CNC/5+1A
Worktable size	L3500*W2000mm
Maximum cutting	L3500*W2000*H120mm
Blade diameter	350-500mm
Main motor power	22 kw(permanet magnet motor with frequency), 40% Power Saving
Router power	5.5kw
Router max speed	24000 rpm
Control Center	high-end CNC system+ an industrial computer
Controller brand	"Cut Cam"CNC System
Driving motor	Servo motor
Transmission:	X axis adopts Linear Guide Rail + helical rack and gear + planetary reducer. Y axis adopts Linear Guide Rail + helical rack and gear + planetary reducer + Oil-immersed structure. Z axis adopts Linear Guide Rail+ Ball screw.
C-axis rotate	C axis adopts high-precision Reducer. It can rotate 0-360 ° to process various shapes.
A-axis Rotate	A axis adopts high-precision Reducer. It can tilt 0°~90 ° to process various shapes.
Total power	35kw
Vacuum Lifter lifting weight	200 kgs
Clamping Cylinders	5 groups
Worktable	PVC+ Rubber, can tilt 85°
Dimensions	L5750*W4150*H3500mm
Water consumption	2m³/h
Total weight	5.4t
Main part delivered size	5750x2200x2600mm
Machine-delivered method	Main part delivered as a whole (40 High-Cube container)

Option: Chassis be hot-dip galvanized

Option: Add Front sliding doors

Product Description
We supply 5 axis CNC Marble Cutting Machine for Processing Granite, Marble, Quartz, Sintered Stone, etc. A Camera is equiped to position Plates automatically and help calculate the size of workpieces. The Machine Head can rotate 0~360°, Tilt 0~90°, enable Processing at various Angles and directions. It adopts CNC system, together with an industrial Computer, makes stone Production totally automatic. Operators can Cutting stone easily.
CNC Marble Cutting Machine Functions:
* Straight Cut: various polygons, vertical Cut, Miter Cut, Bevel Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals...
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
*Vein matching: match vein and seam of your slabs with ease.

Product Features
1. Adopt Water-Cooled Electric spindle
* Rotating speed: 0-24000 rpm
The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, milling, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. Adopt a Camera, Brand Hikvision
This Machine equipt a high-precision camera Camera layout function.
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
Working Head can rotate 0°~360°, and tilt 0°~90°
4. Benchtable Turnover 85°
This worktable can be flipped over 85°, facilitating loading and unloading process, reducing human labor.
5. Adopt Clamping Cylinders
This Machine has a group of clamping Cylinders on sides of worktable.
They will automatically clamp workpieces during milling work. It ensures precision and high-efficiency.
6. Adopt Vacuum Lifters
If the blade-cutting path conflicts, the Vacuum Lifters will help to move slabs automatically. The suction sups can lift and move maximum 200kgs' slab. It makes the production fully automatic.
7. Adopt Big Chamfering Range
This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

8. Adopt Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen.

9. Adopt CNC System CutCam or Esa
The CNC system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. Adopt Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. Auto thickness measuring probe
Can Measure the thickness of workpieces automatically.

Application Pictures

Packaging & Shipping
This model can be loaded into a 40' HIGH-CUBE Container.
Company Profile

Certifications
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.
FAQ
Q: Can you make Sample production according to my requirement?
A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.
Q: Where is your factory located ? How can I visit it ?
A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.
Q: How long is the production time?
A: It generally takes 30 days
Q: This is the first time I buy the machine, is it easy to operate?
A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.
