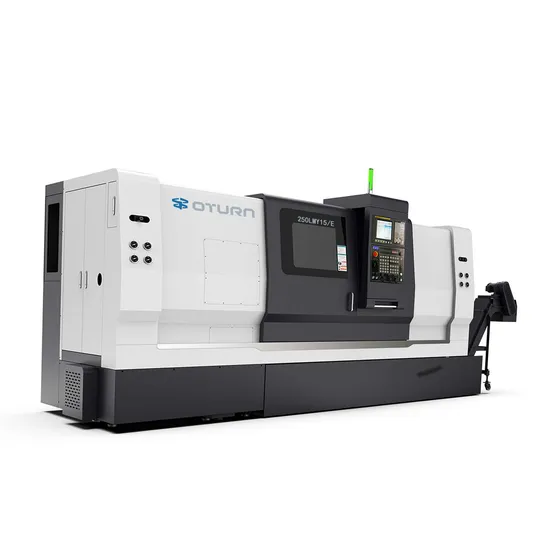

High Speed CNC Metal Lathe Center Turning and Milling Machine with CE

Product Description

Product Description
The Advanced CNC Metal Lathe Center incorporates an ingeniously optimized 30-degree inclined bed structure design, ensuring unparalleled precision, extraordinary rigidity, and superior cutting stability. Crafted from a single piece of high-strength HT300 cast iron, the robust structural lathe bed undergoes finite element analysis to guarantee exceptional mechanical rigidity and stability. This meticulous design not only sustains long-term reliable accuracy but also enhances processing stability and extends tool life. Additionally, stress relief treatment further augments accuracy stability. The high-strength hard rail structure and the screw pre-tension design in the transmission system significantly boost rigidity performance.
Equipped with hard rail guides and meticulously heat-treated, precision-ground ball screws, the machine guarantees optimal accuracy and remarkable durability. Each axis features a direct transfer axis structure paired with a double-anchor pre-relay method, effectively minimizing thermal displacement and vastly improving processing accuracy.
Product Parameters

Item	Unit	TY250LMY15/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ540
Max. processing diameter on tool holder	mm	Φ540
Max. processing length	mm	1330
Spindle nose	type	A2-11
Max. Spindle speed	rpm	2500
Cylinder/Chuck	lnch	12″
Spindle bore diameter	mm	Φ117
Bar diameter	mm	Φ102
Spindle motor power	kw	15/18.5
Motor torque220-272 Spindle motor power1:2	Nm	440-544
X/Z axis limit travel	mm	310/1450/120±60
X/Z axis guide rail specifications	spes	Hard rail
X/Z axis motor torque	Nm	22
X/Z/Y axis motor power	kw	3.0/3.0/1.8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z/Y axis rapid movement	m/min	20/20/8
Powered tool turret type	pcs	BMT65-12/ER32
Power turret power	KW	7.5
Max. speed of driven tool holder	rpm	6000
Outside diameter tool holder specifications	mm	25X25
Inner diameter tool holder specifications	mm	Φ50
Adjacent tool change time	sec	0.38
Hydraulic tailstock	/	Hydraulic
Max. travel of tailstock	mm	1530
Tailstock sleeve tapered hole	type	Mohs5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	80
Machine size	mm	4850*2300*2100
Machine Weight	kg	7500
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricating oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications so we can recommend the best model for you. Alternatively, you can select the exact model or send us your product drawings, and we will identify the most suitable machines for your needs.
Q2: What are the main products of your company?
We specialize in a wide range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turn-milling composite processing equipment, among others.
Q3: Where is our factory located? How can I visit there?
Our factories are strategically located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us.
Q4: How do you transport the machines?
We offer comprehensive transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the Payment Terms?
Payment Terms: T/T, 30% initial payment upon order, and 70% balance payment before shipment.
Q6: What is the MOQ?
A: The minimum order quantity is 1 set. For certain low-cost machines, the MOQ may be more than 1 set.
