Universal Cylinder Grinder Machine M1450/Cylindrical Grinding Machine
Basic Info.
Model NO.
M1450
Type
Surface Grinding Machine
Processing Object
Splined Shaft
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE
Condition
New
Distance Between Center
1500/3000
Center Height
270
Dia Ground(O.D)
25-500
Dia Ground(I.D)
30-200
Max Weight Work Piece
1000
Center Taper
Mt6
Max Travel
370
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Product Description

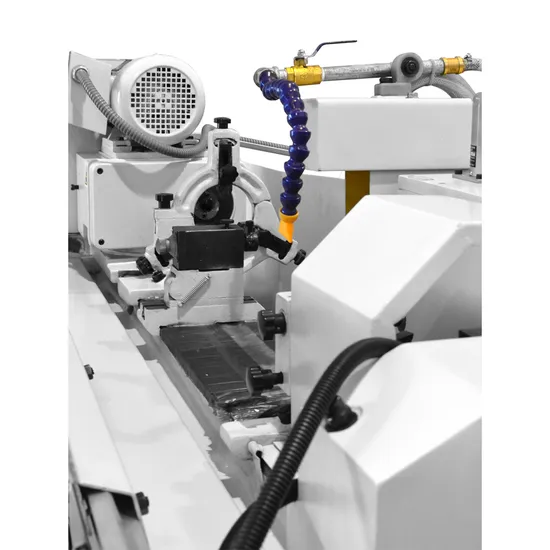

Detailed PhotosProduct Description
Via linear hydraulic feed
Solid workpiece spindle head and wide, rigid grinding spindle support with inside grinder ensure the best possible results under varying operating conditions
grinding spindle supported on both sides in an adjustable 3-segment bushing a dwell time can be set at the end of the table travel
The sturdy spindle head swivels 30° to the left and the right
Pawl-feed in combination with a zero-stop allows repeated feed without checking the feed scale
including inside grinding feature and automatic infeed
hydraulic or manual rapid feed with return
infinitely variable feed
| MODEL | Unit | M1450 | |
| Distance between centers | mm | 1500 | |
| Center height | mm | 270 | |
| Dia Ground(O.D) | mm | 25-500 | |
| Dia Ground(I.D) | mm | 30-200 | |
| Max length ground(O.D) | mm | 2000 | |
| Max length ground(I.D) | mm | 320 | |
| Max weight work piece | Kg | 1000 | |
| Work head Swiveling angle | +90 degree | ||
| Center taper | MT | 6 | |
| Spindle speed | r/min | 25-224 steplesss | |
| Wheel spindle speed | r/min | 1330/665 | |
| Wheel head rapid travel | Mm | 100 | |
| Max travel | Mm | 370 | |
| Wheel head swivel angle | -30 degree | ||
| Hand feed per rev | Rough:4 fine:0.5 | ||
| Hand feed per gra | Rough:0.02 Fine:0.0025 | ||
| Wheel size | Mm | 500× 75× 305 | |
| Internal grinding spindle speed | R/min | 10000 | |
| Internal grinding wheel size | mm | max: 175× 32× 32 min: 30× 25× 10 | |
| Table hand feed per rev | Mm | 5 | |
| Max swiveling angle of able | Clockwise | 2°(2000,3000) | |
| Anticlockwise | 5°(2000) | ||
| Longitudinal speed range of table | m/min | 0.1-3 | |
| Center taper | Mt | 6 | |
| Quill travel | mm | 70 | |
| Wheel head motor power | Kw | 15 | |
| Internal head motor power | kw | 1.5 | |
| Work head motor power | Kw | 4 | |
| Gross weight | T | 10 | |
| Packing dimension | cm | 560*2090*2100 (1500) | |
Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser stand
Standard grinding wheel
Leveling wedge and bolt
Standard electro magnetic chuck
Optional accessories:
Wheel balancing stand-->USD250.00
Magnetic separator-->USD500.00
Close type steady rest-->USD420
End wheel dresser-->USD200
Radial wheel dresser-->USD150
