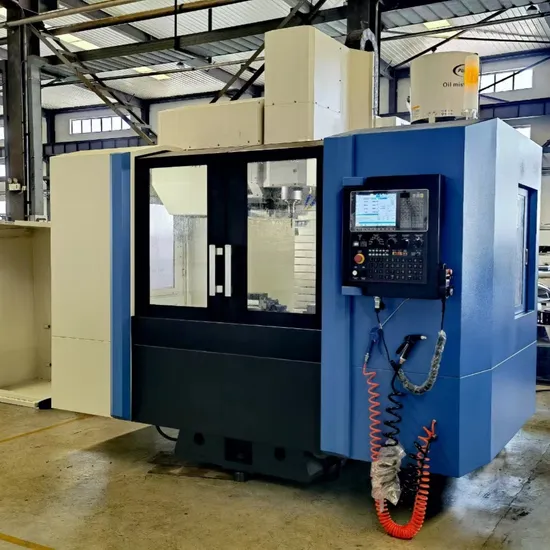

Vmc1000b Frame Complete CNC Milling Machine Telescopic Cover Vertical Machining Center Machine

Product Description

Product Description
Machine features
The structure of the machine tool is-analyzed with ANSYS at all stages from foundation design to grantee high speed and high precision continuous machining. A simulation testing for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.
The gear type spindle variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range. By enlarging thickness and diameter of spindle ends and flanges, the spindle with roller bearing not only strengthens all factors related to spindle system, but also improves cutting performance via clamping force of powerful tools.
Automatic tool changer is composed of tool magazine and tool changing arms.Automatic tool changer is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic tool changer and other reasons on precision. Tool selection adopts the method of fixed address in the shortest path. All tools return to original position, therefore, the problem of collision between large-size tools is only considered in initial installation. Two-way tool magazine adopts the shortest path.
Structure
The machine body structure has oil-water separation , reduce the pollution of the waste cutting fluid

Material :
Line rail extension , reduce shield running noise , prolong the service life of the shield
Bearing
Double protection of the bearing , prevent damage of oil pollution resulting in abnormal bearing
Working function :
Assembly workshop

Item	Unit	VMC1000B
Worktable dimensions	mm	1200x500
T-slot sizes	mm	18x5
Max. load allowed	kg	600
X-axis travel	mm	1000
Y-axis travel	mm	610
Z-axis travel	mm	650
Max. distance from spindle nose to worktable	mm	800
Min. distance from spindle nose to worktable	mm	150
Spindle taper shank		7:24 BT40
Spindle speed	r/min	8000
Main motor torque	Nm	52.5
Main motor power	kW	11/15
X/Y/Z axis rapid speed	m/min	32/32/30
Feed speed	m/min	20
Tool magazine form		Mechanical arm
Tool quantity	pcs	24
Tool change time	s	2.5
Positioning accuracy (perform the standard JISB6330	mm	±0.005/300
Positioning accuracy (perform the standard JISBT8771.4)	mm	0.016/0.012/0.012
Repeatability accuracy (perform the standard JISB6330	mm	±0.003
Repeatability accuracy (perform the standard JISBT8771.4)	mm	0.010/0.008/0.008
General power capacity	KVA	25
Air-supply pressure	Mpa	0.5-0.7
Overall dimensions (LxWxH)	mm	4355×2275×2920
Machine weight	kg	7000
CNC controller		FANUC 0i-MF
