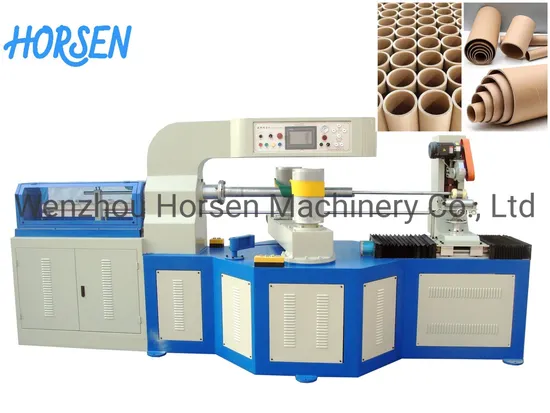

Single Blade Small Tube Cutting Paper Straw Making Machine and Paper Processing Machinery
Basic Info.
Model NO.
HSS-J100
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
3-20m/Min
Wall Thickness of Paper Tube
0.5-5mm
Certification
CE
Condition
New
After-sales Service
One Year Warranty
Paper Shelf Type
Integral Reel Stand
Main Motor
5.5 Kw
Transport Package
Wooden Case
Specification
4200*1800*2000 mm
Trademark
Horsen
Origin
China
HS Code
84418090
Production Capacity
30sets/Month
Product Description
PAPER TUBE MAKING MACHINEUSE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; Computer PLC control, touch screen man-machine interface operation; Round knife cutting, incision more smooth, performance more stable; with polyurethane scraper and high carbon steel plastic knife, durable in use; Integration linkage device of integral paper reel stand and glue system, all electric regulation to feed paper; With multifunction waxing paper device and auto stop when paper cut off. Specification:
| Technical Parameter | |
| Number of roller | 3-8 layer |
| Tube diameter | 15-150 mm |
| Tube wall-thickness | 0.5-5 mm |
| Core mould fixed way | Flank chuck |
| Winding head | 2 |
| Cutting way | Round knife |
| Gluing way | Single / double sides |
| Operator | 1-2 person |
| Winding speed | 3-20 m/min |
| Speed control | Transducer |
| Equip device | |
| Paper shelf type | Integral reel stand |
| Auto fall tube shelf | Have |
| Glue shelf | Have |
| Belts | 2 |
| Core mould | 2 |
| Cut up-down control | Y lead screw+ stepper motor |
| Cut left-right control | Z lead screw+ servo motor |
| Mainframe size & Weight | |||
| Mainframe size | 4200*1800*2000 mm | Weight | 3000 KG |
| Area space | 11000*8000 mm | ||
