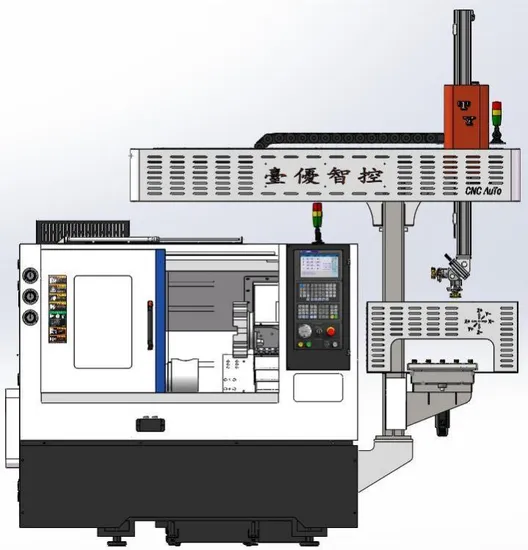

CNC Turning Machine with Milling Units
| US$21,880.00-22,880.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XC-36DT
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Pallet
Origin
China
HS Code
8458110090
Production Capacity
10 Units Per Month
Product Description
XC-36DT-TY-A120-3 process solutionQuotation Validity : 2 month
Delivery Time: 60days upon receipt of40% the advance
Payment term: 40% in advance, the balance upon B/L copyto ocean shipment.
XC-36DT Major machine Tech. parameter XC-36DT Mchine parameter
| Item | unit | specification | origin |
| controller | EA | GSK980TB3i | Guangzhou Degital |
| Swing Dia Max | mm | Φ460 | |
| Max collet Dia/Length | mm | Φ210x300 | |
| Bar Max Dia | mm | Φ35 | |
| Spindle | mm | Φ150 | China branded PY-150 |
| Speed | rpm | 35~3000 | |
| Spindle nose | ASA | A2-5 | |
| Spindle bore | mm | Φ49 | |
| Indexing Chuck | mm | Φ235 | |
| Turning oil cylinder | EA | for indexing chuck | |
| Travel (X/Z) | mm | 20+200/350 | |
| Feeding speed | M/min | 20/20 | |
| Screw rod (X/Z) | mm | 4010/4010 | Taiwan DH |
| Linear (X/Z) | mm | 30/35 | Taiwan DH |
| Turret | EA | 80-8T 8 position | Taiwan branded |
| Boring tool bracket | mm | Φ32 | |
| Arbor size | mm | 25x25 | |
| Motor power | KW | 5.5 | |
| two-way positioning accuracy | mm | 0.008 | |
| Single -way accuracy | mm | 0.004 | |
| Hydraulic pressure station | KW | 1.5 | |
| Lubrication | L | 2L | |
| Coolant pump | W | 500 | |
| Weight | kg | 2200 | |
| Overall size | mm | 2010x1520x1860 | |
Truss loader/unloader
| No. | Item | OEM | Remark |
| 1 | Portable controller | Xinjie | 8" |
| 2 | PLC | Xinjie | Bus motion |
| 3 | Driver | Xinjie | |
| 4 | Gear rack | DF | |
| 5 | X axis linear | Taiwan DH | GHH20CA |
| 6 | Y axis linear | Taiwan DH | GHH20CA |
| 7 | Z axis rack | China Local | SBR16 |
| 8 | Fram structure | IAT | |
| 9 | Soft Drag Chain | IAT | |
| 10 | Pneumatic cylinder | Changtuo | |
| 11 | Pneumatic clamp | Changtuo | |
| 12 | Pneumatic processor | Changtuo | |
| 13 | Pneumatic solenoid valve | Changtuo | |
| 14 | Sensor switch | Changtuo | |
| 15 | workpiece Tray | Customized 400x400x2 | Made of bakelite |
| 16 | Planetary gear | Taiwan | |
| 17 | Lubrication pump | Qiren | |
| 18 | signal light | Qiren | |
| 19 | Electical components | Tianzheng China big brand | |
| 20 | X travel | 1900mm | |
| 21 | Y travel | 920mm | |
| 22 | Z travel | 800mm | |
Specifications
| Unit | FL400 | |||
| Capacity | Chuck/collet Bed type/ guideway Max. swing dia. Over bed Max. length of workpiece Max. swing dia. Over slide | type mm mm mm | Manual chuck 8" *Hydraulic chuck 8", *6" Flat/LM Φ400 320 Φ180 | |
| Spindle | Spindle bore Max. dia. Of through hole Spindle nose Spindle speed Spindle motor power | mm | Φ62 | Φ48 |
| mm | Φ52 | Φ40 | ||
| A2-6 | A2-5 | |||
| rpm | 2000 | 3000 | ||
| *3500 | *4500 | |||
| KW | 5.5/7/5 | |||
| Axis | X/Z travel | mm | 380/350 | |
| X/Z rapid traverse | mm/min | 20/20 | ||
| Tool Post | Type | 4-station toolpost | ||
| *8-station turret | ||||
| *Gang type tooling | ||||
| No. of tool stations | No. | 4-10 | ||
| Others | Power capacity | kVA | 11 | |
| Dimensions (LxWxH) | mm | 1950x1250x1620 | ||
| Weight (about) | Kg | 2000 | ||
| Note: *means optional | ||||
