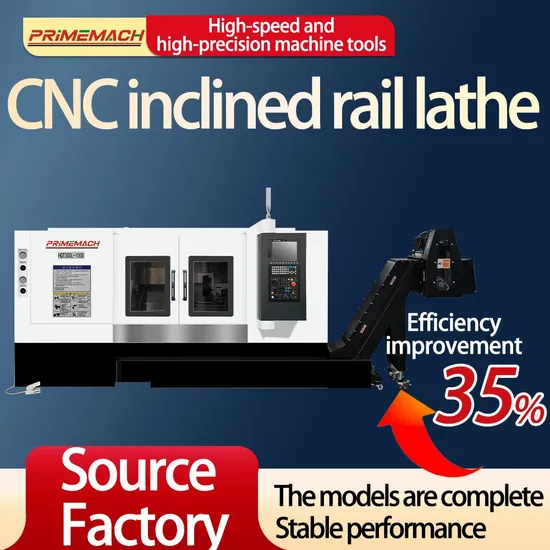

High-Tech Hqt300L-1000 Bed Lathe Import Turning CNC Lathe Machine

Product Description

Flat bed structure, resin sand molding, cast by high-quality cast iron, upper width of 550mm. The guide rail adopts ultra-audio quenching grinding and plastering process, with good wear resistance and accuracy retention, which can ensure that the machine tool can stably carry out high-precision machining during long-term use.
Detail
The spindle adopts a typical structure with two points of support at the front and rear ends, and special bearings for high-precision spindle, giving the spindle high stiffness and rotation accuracy. The main drive is four-speed stepless frequency conversion speed regulation, the speed range is 12.5rpm-1000rpm, which can meet the needs of different processing materials and processes.
The transverse (X-axis) and longitudinal (Z-axis) feed motion is driven by servo motor precision ball screw pair to achieve fast movement and feed motion. X lead screw diameter 32mm, Z lead screw diameter 50mm
Includes a power switch for turning on and off the machine power; Power indicator: indicates the power supply status.
Automatic (AUTO) mode, the machine automatically processes according to the pre-prepared program; Manual (JOG) mode, you can control the movement of each axis of the machine through manual operation of the key

CNC control system	SYNTEC 22TA
Maximum turning diameter	Φ 630 mm
Maximum machining diameter (disc type)	Φ 450 mm
Maximum turning length	1020mm
Spindle through hole diameter	Φ 86 mm
Maximum bar material machining diameter	Φ70mm
Maximum spindle speed	3000rpm
Spindle end form	A2-8
Chuck size	10inch hollow chuck
X axis maximum travel	260mm
X axis fast moving speed	18m/min
Maximum z-axis travel	1050mm
Z-axis fast moving speed	15m/min
Number of tools installed on the tower	12t
Outside diameter tool bar height	25*25mm
Inside diameter Maximum diameter of tool bar	32 / Φ Φ 40 mm
Tailstock travel	600mm
Tailstock sleeve stroke	120mm
Tail seat sleeve taper	Six Mohs
Spindle motor	22kw
Total machine power	40kw
Cooling tank capacity	280L
Machine height	2150mm
Floor area (length * width)	3400*1900mm
Gross machine weight	6000
SIEMENS/FANUC systems	12inch hollow chuck
High pressure effluent 30/70Bar	Feeder, feeder
Center rest	Tail seat thimble
Automatic door	/

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
