Large Model 6-Axis CNC Deep Hole Gun Drilling and Milling Machine for Metal Molds

Product Description

Drilling is the most basic process in machining operation, is also the process with the most wide range in application field. Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll rocessing, and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The CMD series six axis drilling and milling composite machine tool is a multifunctional machine tool that can process deep holes and milling. It's characteristic is equipped iwth a rotating workbench and a winging A-axis, which can perform precisjon machining of complex parts with inclined and double inclined holes, inclined and double inclined surfaces. It's applied in multiple fields.
Such as automotive mold manufactureing, engine cyliner blacok, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power and chemical engineering, etc. Especially the inclined top rod on the mold, the double inclined water parths of the hot forming mold, the hot runner plate, the engine cylinder body, the rolling roller, the rotary table, the flywheel, etc.
1.Complete control system and servo system of FANUC in Japan.
2. A and B axis dual closed-loop design, meeting the requirements of precise composite angles.
3. Equipped with deep hole drilling and milling functions, optional single pipe drilling function.
4. Large A-axis swing angle, wider processing range.
5. The fan-shaped disl shaped hard rail design ensures stable and reliable seing if the A-axis.
6. Anti deviation load rotating workbench.
7. Heavy pre pressed roller precision wire rail, large diameter grinding grade screw rod.
8. Dual cycle precision filtration system and high-pressure cooling chip removal system.
9. The new fully enclosed cover is aesthetically pleasing and has a strong sense of technology.
10. Optimized design of the body, with strong rigidity, high stability, and excellent seismic resistance.

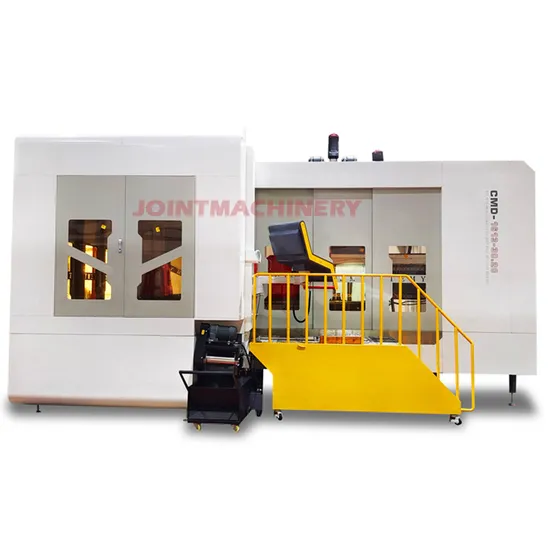

Large Model 6-Axis CNC Deep Hole Gun Drilling and Milling Machine for Metal Molds

Model	Unit	CMD-2016-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-50
Drilling diameter of single pipe drill	mm	18-65/optional
Max drilling depth of gun drill (W)	mm	1600
Machining Stroke
Left and right of workbench (X)	mm	2000
Sliding table stroke (Y)	mm	1650
Column stroke (Z)	mm	1000
Max drilling depth of gun drill (W)	mm	1600
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	18000
Size (L*W)	mm	1800*1600
Spindle
Spindle taper capacity		BT50
Max spindle speed	rpm/min	4500
Power
Spindle motor	kw	15/18.5
X-axis feed servo motor	N.m	36
Y-axis feed servo motor	N.m	36
Z-axis feed servo motor	N.m	36
W-axis feed servo motor	N.m	36
A-axis feed servo motor	N.m	36
B-axis feed servo motor	N.m	36
Total power	kw	65
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	9350*5500*5600
Machine weight (About)	kg	25000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	1600+1000
