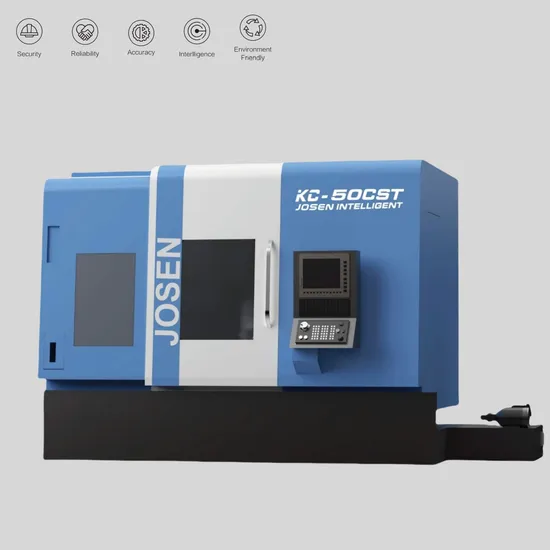

High-Efficiency Synergistic Benchmark Dual-Spindle Dual Turret Mill-Turn Machining Center Dual Spindle Dual Turret Turn-Mill Machining Center Kc-50cst

Product Description

Product Description

1. Equipped with high precision spindle: Eliminate spindle vibration effectively, The runout accuracy of the spindle positioning surface around than 2 μm. which provides the best workpiece stiffness, concentricity, surface roughness and roundness due to the workpiece clamping closer to the spindle bearing. It can also significantly prolong the service life of the tool. The front end of the spindle is a labyrinth sealing structure with positive air pressure protection to prevent coolant and impurities from entering the spindle. Twin spindle with Y axis driven turret can be from simple to complex one hit machining from raw material to finished parts .less setup time ,complete in one setup .during machining process can be turning ,milling, tapping, drilling, boring , hobbing ,slotting operation . 2. The main castings are made of high-grade cast iron by resin sand casting. Adopting advanced finite element analysis technology, the design structure is reasonable and the layout is optimized. And by aging treatment, it can ensure the long-term machining stability of the performance . 3. X and Z axis servo motors are directly connected with precision ball screws through flexible couplings with high precision, and the two ends of the screws are fixed, The reinforced bearing support seat and the ball screw are pre-stretched to ensure the rigidity of the transmission and the dimensional stability of the cooling and heating machine. 4. automatic centralized lubrication system to lubricate the screw, guideway and other moving parts through the set oiling interval and oiling duration to ensure the accuracy and easy service of the machine . 5. The spindle mounting with Magnetic ring encoder, which makes the positioning and C-axis indexing more accurate. 6. The 12-station BMT55 driven turret with bidirectional positioning index, short tool change time and high positioning accuracy, which is conducive to improving machining accuracy. The Y-axis 100 MM travel stroke (± 50) off centerline, capable of eccentric milling, drilling and tapping. High torque power turret and servo-driven C-axis are standardly equipped with 4-axis machining ability. 7. The feed system is driven by servo motor with roller screw drive for high precision and wear resistance. 8. The machine is supported by P-class large-size precision heavy-duty roller guideway with strong support rigidity and high guiding accuracy. The machine is fully protected by the outer cover to prevent the cutting fluid from splashing.

Product Parameters

SL NO.	Description	Unit	Details
Machine performance
1	Maximum swivel diameter of the bed	mm	780
2	Maximum machining diameter	mm	320
3	Maximum cutting length	mm	700
4	Maximum distance between two chucks	mm	700
5	Standard Chuck Size	Inch	8/6
CNC system
1	FANUC system		OITF Plus
Spindle
1	Spindle type		Motor spindle
2	Spindle /sub spindle		A2-6/ A2-5
3	Spindle/sub-spindle through-hole diameter	mm
			66/56
4	Max bar capacity	mm	52/42
5	Front bearing diameter	mm	100
6	Max spindle speed/sub spindle	rpm	4000/5000
7	Spindle motor power	Kw	22
8	Sub-spindle motor power	Kw	15
Turret
1	servo driven turret	mm	BMT55
2	Positions of turret	mm	12
3	Diameter of cutter plate	mm	330
4	Maximum Boring Bar Diameter	mm	40
5	Tool size	mm	25*25
6	Turret power	mm	4.5
7	Rotating speed of live tools	rpm	6000
X, Z axis accuracy
1	X, Z axis positioning accuracy	mm	± 0.005
2	Repeat Positioning Accuracy	mm	± 0.002
X-axis parameters
1	X1 axis travel	mm	230
2	X2 axis travel	mm	230
3	X-axis rapid traverse speed	m/min	24
4	X1 /X2 Axis Ball Screw Diameter and Pitch	mm	40 x 10 (C3 class)
5	X1 /X2 axis guideway type and dimensions	mm	35 (Roller guideway P4 class)
6	X-axis motor power	Kw	3
Z-axis parameters
1	Z1 axis travel	mm	620
2	Z2 axis travel	mm	530
3	Z3 (secondary axis) maximum travel distance	mm	650
4	Z-axis rapid traverse speed	m/min	24
5	Z1 /Z2 /Z3 axis ball screw diameter and pitch	mm	40 x 10 (C3 level)
6	Z1 /Z2 axis guideway type and dimensions	mm	45 (Roller guideway P4 class)
7	Z3 (secondary axis) guideway type and dimensions	mm	35 (Roller guideway P4 class)
8	Z-axis motor power	Kw	3
Y-axis parameters
1	Y axis travel		±50
		mm
2	Y-axis ball screw diameter and pitch	mm	32 x 10 (C3 level)
3	Y-axis guideway type and size	mm	35 (harden P4 class)
4	Y-axis motor power	Kw	2.3
Other
1	Coolant box capacity		200
2	Power Chassis Capacity		35
3	Machine size	mm	3500 X 2300
4	Machine weight	kg	6500
