300t Machinery Vertical Rubber (FIFO) Vulcanizing Molding Injection Machine with ISO&CE&BV Certificate

Product Description

Product Description Rubber (vertical first-in first-out) injection moulding machine (we accept custom-made)
ZJAX200-400T
Machine features :
1.The first trap of the first-in first-out injection system with self-cleaning function.
2.The back pressure is consistent during measurement and the injection accuracy is high.
3.Brand new colour high-definition touch screen.
4.The new Simens editable operating system allows free editing of device actions.
Suitable product:
Industrial product /Medical/Life style /Aerospace/Automotive parts/Seals

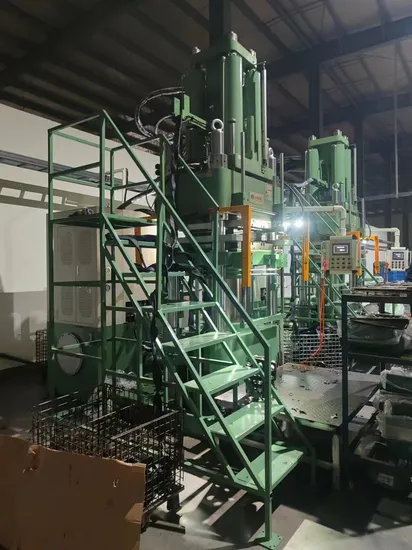

Detailed Photos
Product Parameters

Type	ZJAX-200T	ZJAX-300T	ZJAX-400T
Injection volumn (cc)	2500	4000	5000
Injection pressure (bar)	1700	1700	1700
Clamping force (Ton)	200	300	400
Heating plate dimension (mm)	560*600	700*700	800*800
Opening stroke (mm)	500	550	600
Minimum mold thickness (mm)	60	60	110
Total power (kw)	33	45	55
Machine size (m)	2.8*1.3*3.5	3*1.5*4.3	3.5*1.5*4.7
Whole weight (Ton)	7	9	12

Certifications
Packaging & Shipping
Installation Instructions

After Sales Service
1-Quality guarantee period:Within 12 months,During this period,if there are troubles with machines,the manufacturer should send engineers to repair or replace the spare part if needed.
2-According to demand of buyer,the supplier send engineers to guide the install and the debug.But the buyer should undertake all cost,such as ticket,food,hotel for supplier,also they need pay 200 USD for engineer one day.
3-For the damage caused by the buyer,supplier provides the spare part and repair it with the best price.
4-If machine is broken up due to the not correct of the buyer within the one year period,supplier can send engineers if need to assist buyer,but buyer should undertake all the cost.
5-Within one year guarantee period,if machine broken down due to its quality itself,supplier should solve this for buyer with its cost.
6-Two parties can discuss other items which are not mentioned in this place.
Machine features;
Clamping mode part:
Direct pressure structure with fast closing cylinder on both sides in vertical direction,Two small cylinders for fast opening and closing, speed and pressure can be set;Four-column type, single machine type;A master cylinder to achieve clamping force, clamping pressure can be set;Maximum clamping pressure protection;Precision electronic ruler controls the mode-locking stroke;Before clamping in place, low speed and low pressure control protects mold safety Settings;The mode shift direction is equipped with safety grating.
Heating plate part:
Heating with heating pipe; The upper and lower hot plates are heated in three zones. temperature, high pressure insulation board;The temperature control accuracy of hot plate is ±3ºC.
Hydraulic system:
Highly energy efficient fully matched hydraulic systems;Hydraulic directional valve, double proportional control
Control system for the world famous industry special Siemens PLC;10 inch color LCD display;Chinese button operation panel;Computer PID temperature control; Temperature control accuracy ±3 degrees;The function can be controlled by selecting or not using some machine sequence, exhaust action, vulcanization stop, automatic mold opening, mold shifting and other actions, optional;The electric box is equipped with AC 220V/6A multifunctional socket, which can be used for lighting and maintenance according to Chinese standards;Manual function, automatic control function; Each function does not interfere with each other, and some specific functions can be manually controlled in the automatic state, which is easy to operate on site;
50 sets of mold data memory and storage; Support English letter input;Product production information statistics function;Various information display and alarm;Three-color alarm display light;
Our Advantages:
We are own factory,so we make all the machine parts by ourselves, Besides, you can get the customize service with your requirements,At present, we have established strong business relations with domestic and international customers. Persisting in the aim of "striving for existence by quality and striving for development by sincerity ", we sincerely hope to enter into friendly cooperation with customers on the basis of superior quality, competitive prices and excellent after-sales service, striving for joint resplendence.warmly welcome to our factory !
FAQ :
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty (all the machine parts can be replaced within one year free of charge, not including the man made broke),life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 5-7 days if the machine is in stock; If not, the delivery time is 30-45 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Changsha. We will drive you to our factory by car when you arrive at Changsha Huanghua Airport or Changsha South Railway(Bus) station.
Q5: Why choose Hunan Zhongjun Technology Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards.We will devote every efforts to do the best level machine and service.
