Endless Timing Belt Cutting Machine

Product Description

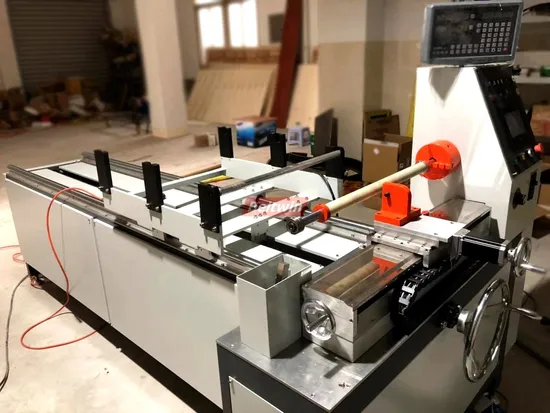

Endless Timing Belt Cutting Machine
The cutting machine was engineered for cutting timing and flat belt sleeves.
The slitter is one of the helpful tools in your shop, it can help you lower labour costs and higher productivity.
The slitter can reduce the storage and costs of belts.
The slitter can supply immediate requirements of your customers. Make a profit.
Have 2 types, semi automatic and automatic
Semi Automatic suitable for medium quantities cutting Automatic suitable for high quantities cutting
Technical Data: Maximum Belt Width 500mm Maximum Length 4500mm Minimum Length: 200mm Minimum Width: 3mm High cutting accuracy, ±0.3mm Electrical connection: 220V, single phase, 3KW. Also can make Dual Voltage 110/220V. With 2 Cutting shafts (35mm and 65mm) Operation: Controlled by PLC Cutting speed is variable (controlled by steady frequency inverter) Digital Display of the cutting width With touch screen, set cutting width and cutting quantities (automatic type) Cutting data storage is optional (automatic type) Manual cutting shaft angle control Pneumatic system, help to support hold the cutting shaft. One air compressor is built-in. Also can remove it, if already have air compressor in your workshop.Cutting Shaft is exchangeable.
Safety devices: Emergency power off Safety knife cover
Electric protection
Machine frame: Main body free of assemble. Other parts easy bolts connection. Easy maintenance. Baking varnish
The feet of machine are adjustable, make the machine horizontally. Suitable for different floor.
Tension Device: Electric control
Use ball screw & brass nut Speed is adjustable
Cutting Tool:
Frequency conversion motor, not normal motor (Semi Automatic slitter) High accuracy Servo motor (Automatic slitter)
Knife holder forward and back, use 4pcs cross guide rail, move accuracy under 0.01mm. Cutting motion via hand lever or automatic (via stepping motor)
Slide move use roller screw:
Automatic Slitter: Three functions in one machine:
1.Manual, manual cutting & manual control the belt width (When use for big size belt, like 3M 5M, small quantities) 2.Semi-automatic. Setting belt width, manual cutting motion. Suitable for medium size and medium quantities. 3.Automatic. Very helpful for small belt, and high quantities. For example, need cut into 200~300pcs small belt.
Special requirements: Special belt lengths and belt widths.
Can make workshop version for timing belt manufacturer use, longer belt and wider. For example, belt width 1m and belt length 8m.
Special working voltage
Special control panel and function requirements, like data output etc.
Our patent certificate:
With our 3 factories 50 workers and 2 type(one for factory and another for on-site work)
1."Quality is our culture"90% of splice press parts is imported from JAPAN and GERMANY.
2."With us your money in safe" full refund in case of bad quality or delay delivery time .we also accept payment by paypal.
3."TIME IS GOLD" for you and for us,we have professional team work whom can making nice quality in short time.
4."Quality is the soul of an enterprise" we had the honor to serve "CE".
We still can do OEM,,if you interesting to make a custom machine please reply me and I will give more suggestions.
Suggestion of workshop partitions
Total solution is how we define Holobelt company. From design, engineering, manufacturing and training,
Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.
Your PVC/PU and Rubber conveyor Belt workshop arranged by the expert!
With a good equipped fabrication workshop you can earn money.
With proper logistic and equipment, perform tasks quickly and efficiently. You will save time and material.
Holo is specialized in all possible fabrication equipment for the Rubber and PVC/PU conveyor belt industry.
Also a turnkey design and layout of your workshop is possible.
Some of Successful transaction cases and our advantages:
