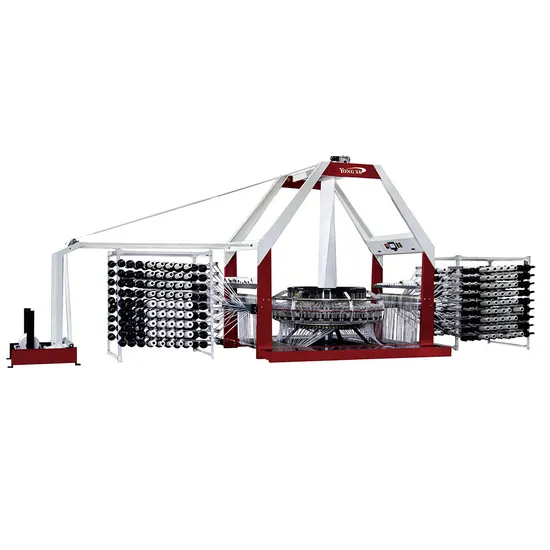

PP Woven Bag Making Machine Six Shuttle Circular Loom Machine

Product Description

Product Description
Application
To weave PP/HDPE fabric for woven bag, cement bag, rice bag, flour bag, pet food bag, animal food bag, fertilizer bag, chemical bag, etc.
Technical Data

S/N.	Items	Parameters
1)	Model	YX-FYB850/6	YX-FYB1200/6	YX-FYB1500/6
2)	Shuttle	6 Shuttles	6 Shuttles	6 Shuttles
3)	Folded width	400-800mm	600-1100mm	950-1350mm
4)	Production speed	3200-4000 meter/day, depend on the final width of yarn.	2300-2900 meter/day, depend on the final width of yarn.	1500-2300 meter/day, depend on the final width of yarn.
5)	Number Of tapes	792 spindles	936 spindles	1092 spindles
6)	Main motor power(kw)	2.2kw	2.2kw	3kw
7)	Total power(kw)	2.7kw	2.7kw	3.5kw
8)	Prime motor rotational speed(r/min)	130-180	130-180	110-150
9)	Cam tape	Flat cam	Small Flat cam	Small Flat cam
10)	Installing Dimensions (L*W*H)	9000*2300*3300mm	9300*2500*4000mm	9800*2900*4000mm
11)	Weight(kg)	About 1600	About 1700	About 2100

Composition Of The Standard Loom

Frame	1 set
Creel Stand	2 unit
Central drive system (small cam, A.C. motor)	1 unit
Positive warp infeed system with torque motor	2 unit
Warp break detecting system	1 unit
Weft break detecting system	1 unit
Weft pre exhaust detecting system	1 unit
Shuttle assembly	6 units
Shuttle wheel	without
Shuttle motion guide	1 unit
Weaving size ring	1 unit
Bobbin storage above the intake	2 units
Manual operation control unit	3 units
Fabric haul-off system	1 unit
Electronic meter counter	1 unit
Standard width surface winder	1 unit
Loom control system	1 unit

Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Pingyang Yongxu Packaging CO.,LTD Founded in 2010 at Xiaojiang Town, Wenzhou City, Zhejiang Province, China,
We are professional for complete line of PP Woven bag making machines such as Cement Woven Bag Making Machine, ,Rice Woven Bag
Making Machine, fertilizer Woven Bag Making Machine, Grain Woven Bag Making Machine, corn Woven Bag Making Machine, soybean Woven bag making machines, sesame Woven Bag Making Machine, Jumbo Woven Bag Making Machine, FIBC Woven Bag Making Machine, and Mesh Bag Making Machine, Leno Bag Making Machine, Plastic Rope Making Machine as well.We also make PP Woven bag Production Line such as Cement Woven Bag Production Line, Rice Woven Bag Production Line, fertilizer Woven Bag Production Line, Grain Woven Bag Production Line, corn Woven Bag Production Line, soybean Woven bag Production Line, sesame Woven Bag Production Line, Jumbo Woven Bag Production Line, FIBC Woven Bag Production Line, and Mesh Bag Production Line, Leno Bag Production Line, Plastic Rope Production Line.
It is a specialized manufacturer of series of whole set plastic machinery products such as Complete Line of Woven Bag Making Machines, PP Mesh/Leno Bag/FIBC Woven Bag/Container Bag/Cement Bag/Rice Bag Making Machine,Plastic Bag Making Machine, Plastic Rope Making Machine. Having passed ISO9001:2000 International Quality System authentification and got CE Certificate.
