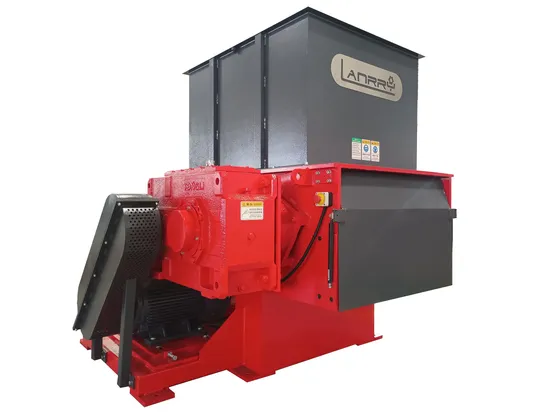

Industrial Plastic Film Paper Cardboard Fiber Carpet Cloth Single Shaft Pallet Shredder

Product Description

Product Description
The single shaft shredder has low speed and high torque. It is the most common type of machine used in recycling facilities, and it can process large amounts of material at once. These shredders are ideal for especially hard and voluminous material applications like plastic, cardboard, copper wire foam, mixed household, and commercial waste. Depending on the model and material, the machines have a throughput range of 300 kg/h to 5000 kg/h.
Our single shaft shredders have the following features:
1-The rotor knives: : DC53, HRC60±1
2-The stator-knives: D2, HRC60±1
3-The main electrical components are from well-known manufacturers such as Siemens and Schneider.
4-Automatic protection is designed to avoid machine overload and jamming.
5-Split bearing housing technology enables quick and easy blade changes.
6-The moving blade needs to be replaced only after twice use, which reduces operating costs and downtime.
7-The stator knives can be adjusted to maintain proper clearance to the rotor knives.
8-It is easy to replace the screen.
9-It has replaceable and adjustable guide bars and blocks, which keep the shredder bin sealed and pushing smoothly.
10-Set with a two-speed hydraulic system and air-cooled units.

*CE-standard safety devices are CE-certified.
Four types of screens are available: Standard-screen, V-screen, I-screen, and Z-screen. (Please mark the type and the aperture size, or it will be the Ø40 standard one.)
1. The standard screen sets have standard rotor. It is available for hard plastic, wood, etc.
2. The V-screen is set with an F-rotor. It is available for the film, woven bags, etc.
3. The I-screen sets with an F-rotor. It is available for the film, woven bags, etc.
4.The Z- screen sets with an F- rotor. It is available for the film, woven bags, etc.

There are four types of rotors available: Standard-rotor, F-rotor, S-rotor, and K-rotor. (Please mark the type you want, or it will be the standard rotor.)
1. The standard rotor is available for easily crushed materials such as PE, PP, PS, PET, wood, leather, and paper.
2. The F-rotor is available for soft and easily winded materials, such as film, woven bags, and plastic wire.Here is a V-shaped circular groove, which reduces the gap between the rotor and the stator-knives while increasing the number of moving knives. There are no stator knives, and it usually uses Z or I screens.
3. The S-rotor is available for hard materials,such as ABS and copper cable. It's wider than the standard rotor.
4.K-Rotor is detachable for easy change.
Detailed Photos
Product Parameters
Small Single Shaft Shredder

Model/Item	LS2260
Dimension L/W/H(mm)	1780x1350x1754
Cutting Chamber C/D(mm)	857X602
Height of Discharge Port(mm)	546
Main Motor Power(KW)	18.5
Hydraulic Motor Power(KW)	2.2
Weight(kG)	1400

Medium Single Shaft Shredder

Model/Item	LS4080	LS40100	LS40120	LS40150
Dimension L/W/H(mm)	2825x1747x1875	2825x2004x1875	2825x2564x1875	2825x2964x1935
Cutting Chamber C/D(mm)	1410x800	1410x1000	1410x1200	1410x1500
Height of Discharge Port(mm)	500	500	500	560
Main Motor Power(KW)	37	45	55	75
Hydraulic Motor Power(KW)	2.2	2.2	5.5	5.5
Weight(KG)	3500	4000	5000	6200

Model/Item	LS48150	LS48200	LS48250
Dimension L/W/H(mm)	3135x2968x2105	3255x4415x2720	3255x4615x2720
Cutting Chamber C/D(mm)	1560x1500	1560x2000	1560x2500
Height of Discharge Port(mm)	600	950	950
Main Motor Power(KW)	90	75+75	90+90
Hydraulic Motor Power(KW)	5.5	7.5	7.5
Weight(KG)	7800	10000	12000

Large Shaft Shredder

Model/Item	LS66200	LS66300
Dimension L/W/H(mm)	4100x3950x3000	4100x5500x3000
Cutting Chamber C/D(mm)	1885x2000	1885x3000
Height of Discharge Port(mm)	1020	1020
Main Motor Power(KW)	90+90	132+132
Hydraulic Motor Power(KW)	11	11
Weight(KG)	12500	15500

LSW Series

Model/Item	LSW48150	LSW48200	LSW48250
Dimension L/W/H(mm)	2740x3750x2770	2740x4265x2770	2740x4930x2770
Cutting Chamber C/D(mm)	2120x1970	2120x2470	2120x2970
Height of Discharge Port(mm)	600	600	600
Main Motor Power(KW)	90	75+75	90+90
Hydraulic Motor Power(KW)	7.5	7.5	7.5
Weight(KG)	8500	10500	12790

LSP Series

Model/Item	LSP4080	LSP40100	LSP40120	LSP40150
Dimension L/W/H(mm)	3350x1670x2460	3500x1870x2460	4100x2380x2640	4400x2580x2460
Cutting Chamber C/D(mm)	840x700	920x880	1080x1100	1300x1400
Height of Discharge Port(mm)	500	500	500	500
Main Motor Power(KW)	37	45	55	75
Hydraulic Motor Power(KW)	2.2	2.2	5.5	5.5
Weight(KG)	4800	5300	6000	7100
