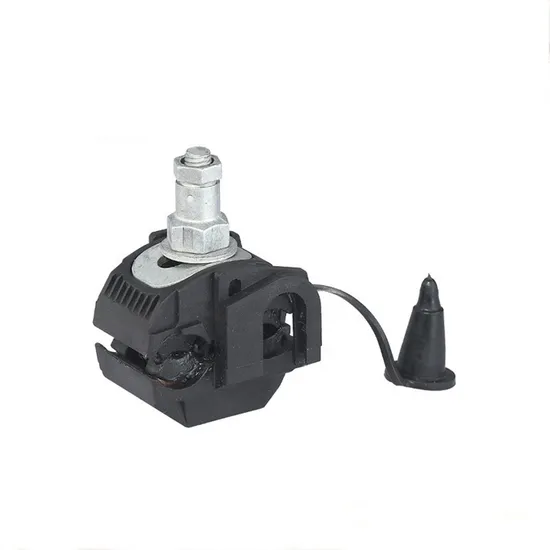

Sm2-95 16-95 4-35 (50) Sqmm Ipc Insulation Piercing Connector for Lower Voltage Overhead Electrical Distribution

Product Description

General of insulation piercing connector(lPC)
1. Piercing connector, simple installation, need not strip the cable coat. 2 .Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead 3. Self-seam frame,wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector 4. Adopted special connecting tablet, apply to joint of Cu(Al) and Cu(Al) or Cu and Al 5. Small electric connecting resistance, connecting resistance less than 1.1 times of the resistance of branch conductor with the same length 6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12KV 7. Arc surface design; apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2)

Technical Data
Item No	SM2-95
Main Line section	16-95mm2
Branch line section	4-35(50)mm2
Nominal current	214A
Bolt No.	1
Weight	198g
Piercing depth	2mm
Size	48X28.5X34CM

PRODUCT PART FIGURE SHEAR HEAD:More than 80% similar factories come from our factory in China.
Insulated shell: Made of high-quality insulation and flame retardant material, the shell is hard and not easy to break,
corrosion-resistant, aging-resistant, and more durable.
Seal:6KV underwater test qualified.
Tooth: aluminum alloy teeth is very hard,(90.2-105HB). Other factories are 60-70HB.
End cap:Quality guarantee 36 month after assembly. Standard: EN50483-4 ; NFC-33-.20
