3D Fixture Welding Table with Clamps

Product Description

Product Description
China Top Quality Hoston 2D welding table plate 3d metal welding table with jigs & welding fixtures
It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided
into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.The tooling platform is divided into steel piece platform and cast iron platform and board platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be drawn on the two right sides of the platform.

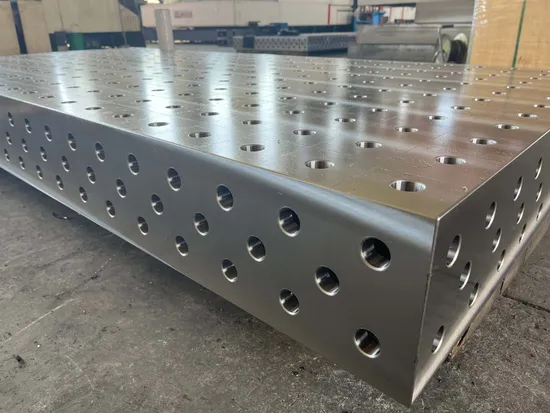

3D Welding Table-D16 Series
Be made of cast iron and Q345 steel
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.24mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs. 3D Welding Table-D28 Series
Be made of cast iron and Q345 steel
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Product Specifications

NO,	Welding Table Specification	Dimension	Hole Diameter	Material
1	4000mm*2000mm	3D/2D	D28/D16	Cast Iron /Q345 steel
2	3000mm*2000mm	3D/2D	D28/D16	Cast Iron /Q345 steel
3	3000mm*1500mm	3D/2D	D28/D16	Cast Iron /Q345 steel
4	2400mm*1200mm	3D/2D	D28/D16	Cast Iron /Q345 steel
5	2000mm*1000mm	3D/2D	D28/D16	Cast Iron /Q345 steel
6	1500mm*1000mm	3D/2D	D28/D16	Cast Iron /Q345 steel
7	1200mm*1000mm	3D/2D	D28/D16	Cast Iron /Q345 steel
8	1000mm*1000mm	3D/2D	D28/D16	Cast Iron /Q345 steel

Product Features
Modularity and flexibility:
Can be connected and changed arbitrarily according to the shape of workpiece. High precision:
The precision can reach decimillimetre(dmm) for fixing and clamping. Quick fixing and clamping:
Only spending a few minutes to fix and clamp workpieces from one to another. Ease to operate:
Only 2 hours, any worker can learn how to use it quickly.
High price-performance ratio:
1 set of modular flexible fixture can replace all traditional dedicated fixtures.Saved a lot of time, labor, material resources and funds for enterprises. Clean, tidy and environmental Friendly:
Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.
After actual measurement, we found that the hardness of the three-dimensional flexible welding platform after nitriding is different from that of the ordinary platform. The hardness of the ordinary platform is only 108HV, and the hardness of the three-dimensional flexible welding platform after nitriding can reach 466HV.
Ordinary platforms are not rust-proof and corrosion-resistant, while the three-dimensional flexible welding platform with nitriding process is rust-proof and corrosion-resistant.
During welding, ordinary welding platforms are easy to stick to welding slag, and it is not easy to clean down after sticking. The three-dimensional flexible welding platform after nitriding is not easy to stick to welding slag, and it is easy to clean even if it sticks.
Why should the three-dimensional welding platform be nitrided? What is the role of nitriding? The three-dimensional welding platform after nitriding has the functions of corrosion resistance, rust resistance, and welding spatter resistance. In addition, the surface hardness of the three-dimensional welding platform can be increased after nitriding. The hardness of the three-dimensional welding platform of Q355 can reach more than HV400 after nitriding.
