Sf8005s Wood Lumber Multi Heads Trim Saw with CE Certification

Product Description

SF8005S Wood Lumber Multi Heads Trim Saw with CE Certification Product Description

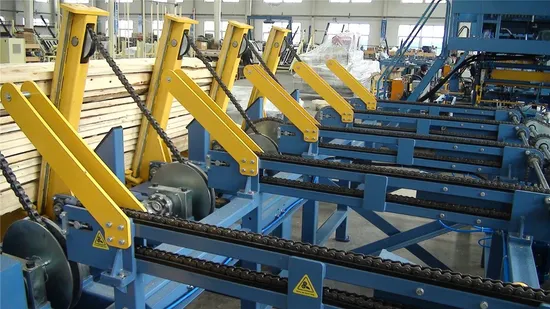

Consist with automatic feeding system, multi head trim saw machine, and control panel, total space 7*6.2*2m, total weight 9240kg.
Feeding system can load wood package 6000*1300*1300mm.
Saw machine each head distance is adjustable manually with hand crank, each head can lift alone (when you no need to use it can lift it), our stadnard model with 5 heads, can customize to 3-8pc heads as your requirements. It's a high speed heavy duty multi head trim saw machine.

Our stadard model features 5 diameter circular saws, set at either equal or various distances from each other, depending on the application at hand. Each saw head can easily be positioned independently using a lockable saw head positioner. As boards are fed in laterally, these saws cut them individually into shorter pieces all at once.
Functions
1) 2-8 sawing heads, 1st head is fixed, other heads are movable.
2) Frequency control working speed, adjust in the control panel.
3) One operator required to operate the machine.
4) Heavy-duty steel construction.
5) 450*30mm diameter, 120 teeth circular saw blades.
6) Each saw is powered by a 5.5kw electric motor.
7) 24pc Chain conveyor dogs draw material evenly into saw to be cut.
8) Material can be up to 120mm thick, as short as 500mm long, and up to max. 6000mm length.
9) 430mm wide belt conveyor collects and discharges waste and end block material.
10) 430mm wide belt conveyor discharges product to either the left or right of machine can decide from the control panel.
11) Completely tested before delivery, can share testing video with you. Product Parameters

Model	SF8005
Cutting length	500-6000mm First saw blade is fixed and max. Cutting off length 90mm Max. Distance between first saw blade and last saw blade is 5000mm
Cutting thickness	Max. 120mm (for 1 piece wood) Max. 60mm (for multi pieces wood)
Feeding block height	60mm
Cutting width	10-400mm
Feeding speed	Max. 6m/min Frequency control
Out-feeding speed	Max. 60m/min Frequency control
Productivity	10pc/min
Cutting accuracy	±1mm
Saw kerf	4mm
Saw blade diameter	450mm*30mm*120T

Detailed Photos
Control panel

Simple control with few buttons, every sawing head control separately.Convenient for workers to learn the operation quickly.
Saw blades
Use 450mm diameter saw blade, and equipped with safety cover better for dust collection.
Belt conveyor
Out-feeding speed can be 60m/min, out-feeding direction is adjustable.
Hand crank to adjust sawing heads distance
Heavy duty design, thus ensure smooth cutting.
Related Products

SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw
