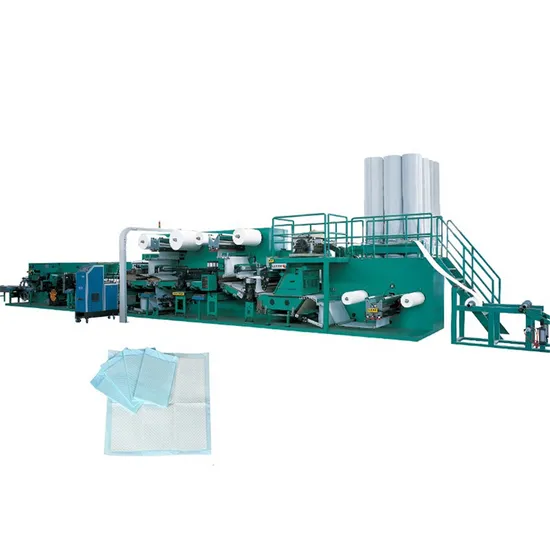

Wholesale Customized Semi Servo Disposable Under Pads Making Machine

Product Description

Wholesale Customized semi servo 5 layers disposable under pads making machine

Subject	Parameter
Stable Working Speed	250-400pcs/min (By order)
Pass Percentage	≥98%
Operating Rate	≥85%
Power Supply	380V 50Hz
Electrical Supply	380V ±5%, 50Hz Three-phase four-wire + ground wire
Power Installed	About 180KW (Not included hot melt glue machine)
Supply Pressure	0.6-0.8Mpa
Machine Sizes (L× W× H )	24.0m× 2.2m× 3.5m(L× W× H )(Only for reference)
Main Engine Sizes (L× W× H )	32m× 6m x5.0m (L× W× H ) ( Only for reference)
Machine Color	Customerized

Configuration:

Configuration
Product Structure	Top tissue paper, cotton core(SAP), bottom layer tissue paper, Top sheet, PE film.
Product Size	Daytime use: 240mm Night use: 285mm (Customized Design)
Control System	PLC control system, Operating on the touch screen, Configure HDTV monitor
Tension System	Tension unwinding equipped, constant tension control with buffer system, automatic web guide system. The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce the time of stop machine.
Drive System	Full servo, semi-servo drive, imported timing belt, key position adpot with the imported bearing.
Safety System	It has safety device on the operating side, matched with urgent stop switch, high audio fan uses sound insulation or silencer.
Materials corrective system	Germany BST automatic web guide system(optional)

Our main Products:

Company Information:
Quanzhou DNW Machinery Manufacturer Co., Ltd.is a professional in the research, development, production, sales and service of disposable hygiene product manufacture equipment.
Our company has consistently adhered to "quality as a fundamental, development by innovation" as business culture. DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
Our service:
Professional
DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
Service
"Quality as Fundamental, Development by Innovation" is our company culture.We are one of leading manufacturer in China and focus on supplying A-Z and 7X24H Service for the customer in the disposable hygiene product filed
Innovate
DNW adopt scientific management strict monitoring, research and development of new products constantly for different customers. Depend on our good engineer from design and technology team.
Efficient
Efficiency is the life of the company. DNW attaches great importance to enterprise efficiency. Introduces advanced company management system for all of our team. According to production schedule to ensure timely finish of machine of customers.
FAQ:
1. What is your manufacture date ?
A: The manufacture date is 120 days after deposit receipt.
2. What is your order payment terms ?
A: 30% deposit in advance and 70% balance before shipment.

3. Can you send us samples of the finally priduct ?
A: Yes, free samples can be sent out, the freight charge is paid by you.
(1). You can provide your a/c like DHL or FEDEX or TNT
(2). You can call your courier to pick up at our office.
(3). You can pay us the express charge by western union or T/T.

4. Where is your factory located? How can I visit it.
A:Our factory is based in Quanzhou city,Fujian province,China
You can fly to Jinjiang air port, we will pick you up.
Contact:
- Full servo, Semi-servo, Full automatic
