Water Based Solvent Based Soxlhet Steam Distill Process Plant Extractor Machine

Product Description

Remark :Above drawing just for reference ,we can do according to client's URS Product Description Usage
Essential oil extraction machine is using steam to distill raw material to extractor the active ingredient essential oil from the different raw material.
Essential oil extraction equipment is widely used in the extraction of conventional oils from flowers, grass, trees, leaves, slices, roots,seeds and animal materials
Reference raw material as below:

Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
Leaves	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood	Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine .

Machine composite

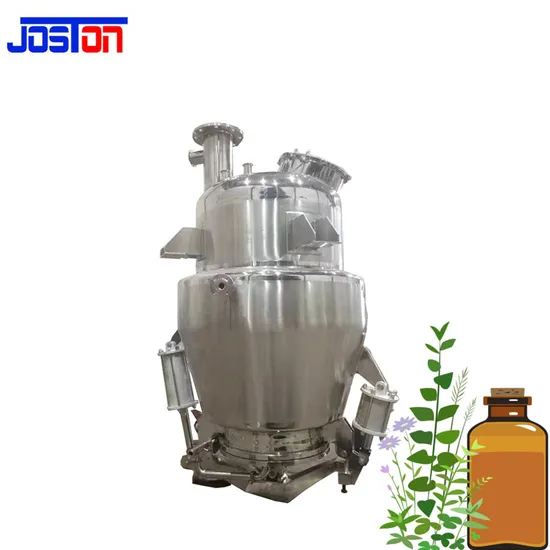

Essential oil extraction machine includes extractor distill tank ,condenser ,sub-cooler ,oil/water separator ,collection tank and pipeline.etc extraction distiller tank :it can use the multifucntional tradition extraction tank ,which have the double jacketed structure ,top equipped with manhole cover for the flowers material loading ,bottom with the pneumatic discharge door gate . it is also can use the basket type extraction tank ,which flowers raw material can charge into the feeding basket ,then load the basket into the extraction tank ,after extraction ,the residue material in the basket will can be take out too . condenser : shell and tube type condenser ,material is Stainless steel ,essential oil passed inside tube ,cooler passed outside tube sub-cooler : coil type sub-cooler ,material is Stainless steel ,essential oil passed inside tube ,cooler passed outside tube. water /oil separator : glass material ,which can be easily to check inside oil level ,so it can be used to collect the essential oil ab drain the water 5) pipeline and valve for the system ,material is Stainless steel
Technical data

Model	TQH-0.5	TQH-1.0	TQH-2.0	TQH-3.0	TQH-5.0	TQH-6.0
Extraction distillation tank volume :L	500	1000	2000	3000	5000	6000
Condenser cooling area:M2	2.0	4.0	8.0	12	20	24
Cooler cooling area:M2	0.5	1.0	2.5	4.0	8.0	10
Steam consumption :kg/h	90	175	350	520	900	1040
Cooling water consumption:T/h	3.	6.5	13	19	30	38

Remark :Above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
