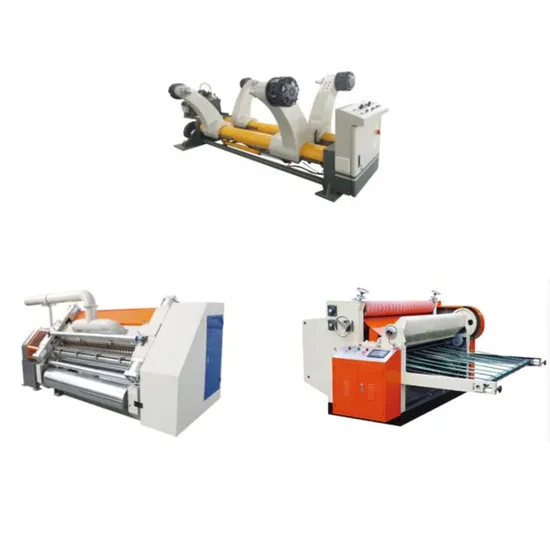

Qh Pack High Speed 2 Layer Corrugated Single Facer Making Machine

Product Description

Product Description
QHMRS-1600H Hydraulic Mill Roll Stand
Description:
This machine is used for supporting and outputting device.
Specification: Working width: 1400mm. Total power:4.0kw. Single side load-weight:2.0T Paper roller diameter: Ø1500MM, Min clamp paper diameter: Ø350MM. The lift-down arm adopted with cast iron curve structure, slinky, firm and steady. Lift-down, clamp-loosen and left-right move are control by Hydraulic cylinder. Tension control: pneumatic brake, with air-pressure valve, pressure regulating valve and manometer to show details when running. Install manual pulley: four wheels type, two railing for one mill roll stand. Whole machine adopt hydraulic control, easy to operate, low fault rate. -SF-280 Single Facer
Technical Parameters
*Expiry width: 1400mm
*Temperature: 160-200ºC
*Total power: 75kw
*Heating method: electric heating

Structural Features
*The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.
*The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
*The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.
*The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.
*This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.
*The glue roller surface is treated with special mesh nicking and chrome-plating.
*Upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated.
*Flute profile: optional by customers.
Parameters of Main Parts
*Upper corrugated roller: Φ280mm Lower corrugated roller: Φ280mm
Produced in Beijing
Pressure Roller: Φ280mm 48# seamless steel pipe, quenched
Produced in Hebei
*Glue Roller: Φ215mm 48# seamless steel pipe, surface treated with special mesh nicking and chrome-plating
*Glue Scraping Roller: Φ136mm 20# seamless steel pipe
place of origin: Chengdu, Sichuan Province
*Pre-heating Roller: Φ296mm 20G Jigang steel wall thickness: 16mm
Materials and Bought-in Components
*Side Wallboards and base: HT200 Place of origin: Hebei
*Base of transmission parts: welded by channel
*Electric motors:
*main electric motor:5.5kw 1 set, continuous working
*suction fan: 5.5kw 1 set, continuous working
QHSC-1700C Computer Sheet Cutter single cutter can do single corrugated cardboard vertically and horizontally cutting,it has change order fast and high cutting precision,working speed fast etc. make little waster,when changed the order,it suit for the top grade color printing machine. This machine adopt PLC touch screen to design,through it operator motor can know all the production status,adopt variable frequency motor to adjust the speed,servo control make the cutting length more exactly,making the cutting precision perfectly,(error±1,5mm)mechanical behavior will more fine.
Technique parameter:

Parameter	Unit	Specification
Max.cut width	mm	1600
Cut length range	mm	10-1400
Cut thick	mm	1-2
Confect electric machine	mm	6KW
Work speed	mm	0-80
