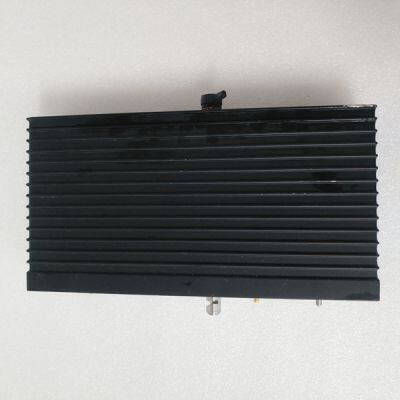

TRICONEX 3381

Product Details

Product Description

Product Description
Brand:TRICONEX
Type:3381
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
ON-LINE INTEGRAL GAIN dflt= 0.5 (0.01, 50) Enter the on-line PID integral gain, in repeats-per-second (rps) followed by ENTER. This value is used to set speed/load control response when the Generator and Utility Tie breaker contacts are closed (if the unit is a generator) or if the turbine speed is above minimum governor speed (if the unit is not a generator) or when the Select Dynamics function is used and the contact is closed. This value can be changed in the Run Mode while the turbine is operating. A recommended starting value is 0.5 rps. ON-LINE DERIVATIVE RATIO dflt= 5.0 (0.01,100) Enter the on-line PID derivative ratio followed by ENTER. This value is used to set speed/load control response when the Generator and Utility Tie breaker contacts are closed (if the unit is a generator) or if the turbine speed is above minimum governor speed (if the unit is not a generator) or when the Select Dynamics function is used and the contact is closed. This value can be changed in the Service Mode while the turbine is operating. A recommended starting value is 5% (see Chapter 5—PID Dynamics Settings for more information). Speed Setpoint Values Block When this header appears in the display, press the down arrow key to configure this block or press a left or right arrow key to select another block to configure. (The maximum turbine speed is 20000 rpm and the maximum speed sensor input frequency is 15000 hertz.) OVERSPEED TEST LIMIT (RPM) dflt= 1100 (0.0, 20000) Set the overspeed test limit (in rpm) followed by the ENTER key. This is the maximum speed setpoint the control will increase to when overspeed testing the unit. The setpoint can only be raised to this level when the overspeed test function is being performed. OVERSPEED TRIP LEVEL (RPM) dflt= 1000 (0.0, 20000) Set the 505E’s overspeed trip level (in rpm) followed by the ENTER key. This is the governor overspeed trip setpoint only and is not to be used as ultimate overspeed protection. (Must be less than the ‘Overspeed Test Limit’ Setting) MAX GOVERNOR SPEED SETPOINT (RPM) dflt= 0.0 (0.0, 20000) Set the maximum governor control speed followed by the ENTER key. This is the normal governor operation upper limit. For turbine/generator applications, this value must be at least equal to [Rated Speed + (Droop % x Rated Speed)]. (Must be less than the ‘Overspeed Trip Level’ Setting) MIN GOVERNOR SPEED SETPOINT (RPM) dflt= 0.0 (0.0, 20000) Set the minimum governor control speed followed by the ENTER key. This is the normal governor operation lower limit. (Must be less than the ‘Maximum Governor Speed’ Setting) SPEED SETPOINT SLOW RATE (RPM/SEC) dflt= 5.0 (0.01, 100) Enter the speed setpoint slow rate in rpm per second followed by the ENTER key. This the rate of speed change for normal operation. USE REMOTE SPEED SETPOINT ? dflt= NO (Yes/No) Set to YES followed by ENTER if using an analog input to set the Speed/Load Setpoint. RMT SPEED SETPT MAX RATE (RPM/SEC) dflt= 50.0 (0.01, 500) Enter the Maximum Rate of speed change for remote speed setpoint operation followed by the ENTER key.
