Rubber Track Excavator Micro Bagger 08ton Electric Mini Excavator
Basic Info.
Model NO.
HT10B
Usage
Mining Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE
Condition
New
Weight
1000kg
Digging Bucket
Capacity 0.025cbm/120kg
Bucket Width
380mm
Engine
Koop 192f
Optional Engine
Briggs & Stratton Yanm
Travel Speed
1. 5km/H
Overall Dimension( Lxwxh)
2775 X 930 X 2219mm
Total Length of Track
1230mm
Platform Ground Clearance
380mm
Platform Back Turming Radius
784 mm
Chassis Width
896 mm
Transport Package
Wooden
Specification
2.9m*0.97m*1.6m
Trademark
HIGHTOP
Origin
China
Production Capacity
100
Packaging & Delivery
Package Size
2900.00cm * 970.00cm * 160.00cm
Package Gross Weight
1000.000kg
Product Description
Product Descriptionmini hydraulic crawler excavator

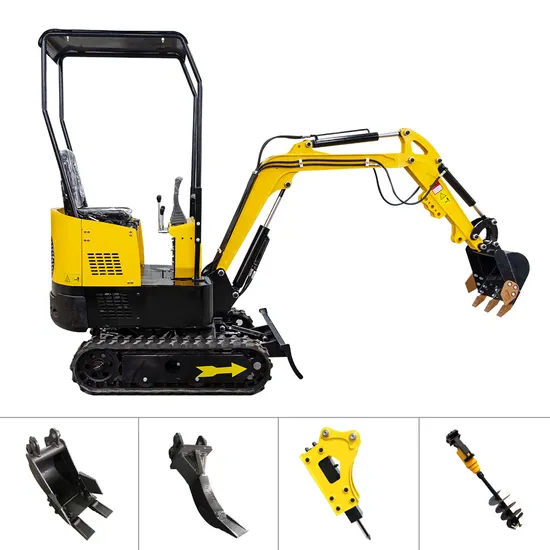

Excavators are able to equipped with multiple work equipments, such as quick hitch, log grab, ripper, leveling bucket, auger and narrow bucket, as well as optional roof, radiator and others, so as to meet your needing.
HT-10B 1T Mini Excavator Description
HT-10B 1T Mini Excavator Advantage 1. The important components on the machine from developed countries :Japan main hydraulic pump,Italy main valve ,Italy swing motor and travelling motor .
2. Use domestic well-known brand Changchai 192F engine, strong power and stable working,or popular Koop Engine to meet Europe emission demand. Cooperate with US BRIGGS &STRATTON Engine to meet USA emission demand .
Other factories only can use common diesel engine,which can not meet USA and Europe emission demand .
3. The hydraulic pipes all imported from Continental AG Germany Company .Not Easy to leak .
Other factories use lower quality high pressure pipe ,leaks everywhere after working one year.
4.100 kg counterweight is added to the rear of the machine which making the machine work more stable and powerful
Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty
Detailed Photos
| Model | HT-10 |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Bucket width | 380mm |
| Engine | KOOP 192F |
| Optional Engine | BRIGGS & STRATTON YANMAR |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 7kw/3000r/min |
| Main pump | G5-6 |
| Displacement | 6.8ml/r |
| Swing motor | SANYANG (BMRS-250) |
| Traveling motor | SANYANG (BMT-245) |
| Travel speed | 1. 5km/h |
| Overall dimension( LxWxH) | 2775 X 930 x 2219 mm |
| Wheelbase | 910 mm |
| Track height | 320 mm |
