2 in 2 out DVI Matrix Switcher with Optical Coaxial Audio Extractor & IR Remote DVI Kvm Switch

Product Description

Product Introductions:


DVI KVM switch two groups of high-definition Audio and video source and USB interface implementation free switch, Adaptive EDID , can adapt to a variety of complex application environments.The equipment has excellent image processing and transmission capacity, make the output signal is more smooth and steady, is a reliable, high performance and efficient way of DVI USB switch

Specifications

Parameter		Description
Video	Standards	DVI 1.0
	Maximum pixel clock	225MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to 4Kx2K@30Hz, 3D, 1920*1080@60Hz
	Connector	DVI-D Interface
	Impedance	100Ω
	DVI Cable Range	<5M( Resolution: 1920*1080@60Hz)
Audio	Interface	3.5mm earphone seat
	Signal type	Stereo
USB	Interface protocols	USB1.1
	PC input interface type	USB-B
	Output interface type	USB-A
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5ºC ~ +70ºC
	Humidity	Operating: 5% ~ 90%
	Dimension	169*75*58mm
	The warranty	1 year free warranty

Specification of product:
1. Features

l The two groups of high-definition Audio and video source and USB interface implementation free switch
l Support video resolution max up to 4Kx2K@30Hz;
l Compliance with DVI 1.0 standard;
l Adaptive EDID , able to adapt to a variety of complex application environment;
l Hot key switch, convenient and quick(Scroll Lock + Scroll Lock+ 1 or 2)
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;


2. Package list


l DVI KVM2*1 Switcher host 1 pcs
l USB Cable 2 pcs
l DVI Cable 4 pcs
l Power adapter 1 pcs
l user manual 1 pcs

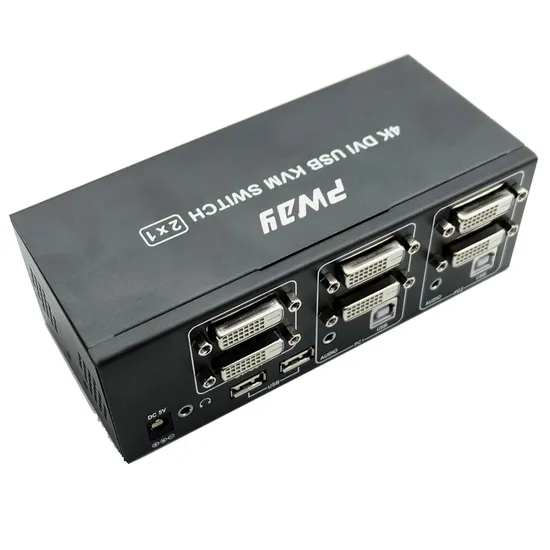

Port name	Description
1	5V power input port
2	Independent audio signal output outlet
3	USB output
4	DVI output
5	PC1, audio, video input
6	PC2, audio, video input
7	PC1,PC2 switch button USB, video light
8	power light
9	RS232 control interface

Introducing the 2 in 2 out DVI Matrix Switcher with Optical Coaxial Audio Extractor & IR Remote DVI Kvm Switch, a cutting-edge solution designed to enhance your professional audio and video switching experience. This high-performance device is specifically tailored for B2B platforms, ensuring seamless connectivity and efficient operation in a formal and professional setting.
The 2 in 2 out DVI Matrix Switcher offers unparalleled versatility, allowing you to effortlessly switch between two DVI sources and distribute them to two DVI displays. With its advanced optical coaxial audio extractor, you can also extract audio signals from the DVI source and transmit them to external audio devices, providing a comprehensive audio-visual solution.
Equipped with an intuitive IR remote control, this DVI Kvm Switch enables convenient and hassle-free operation from a distance. The remote control allows you to effortlessly switch between different sources and displays, providing you with complete control over your audio and video setup. This feature is particularly beneficial in professional environments where quick and efficient switching is crucial.
The Kvm DVI Switch is designed with utmost precision and attention to detail, ensuring exceptional video quality and signal integrity. It supports high-resolution DVI signals up to 1920x1200, delivering crystal-clear images and vibrant colors to your displays. This ensures that your presentations, videos, and graphics are displayed with utmost clarity and precision, leaving a lasting impression on your audience.
With its compact and sleek design, the DVI Audio Switch seamlessly integrates into any professional setup, saving valuable desk space and maintaining a clutter-free environment. Its robust construction guarantees durability and longevity, making it a reliable investment for your business.
In conclusion, the 2 in 2 out DVI Matrix Switcher with Optical Coaxial Audio Extractor & IR Remote DVI Kvm Switch is the ultimate solution for your audio and video switching needs. With its advanced features, intuitive operation, and exceptional performance, this product is the perfect choice for B2B platforms seeking a formal and professional audio-visual solution. Upgrade your setup today and experience the difference this high-quality DVI Kvm Switch can make in your business.
