CIP System for Food Juice Factory

Product Description

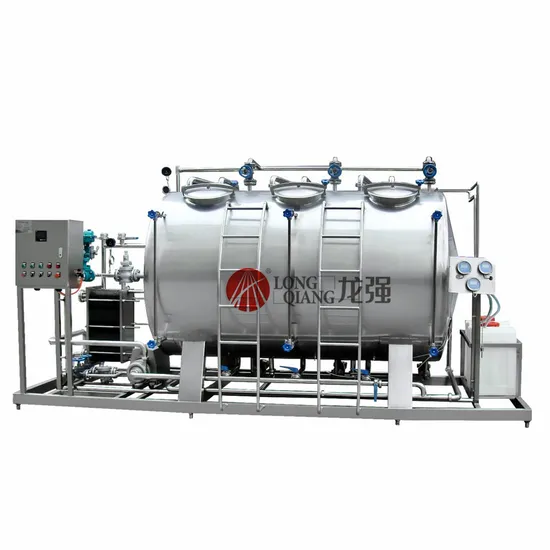

Small Combined Type CIP System
working principle
The system can perform the acid cleaning, alkali cleaning and hot water cleaning separately. And also the system can draw up the special full-auto cleaning program according to the request. It will not only can cleaning all the equipments efficiently, but also can limit the growing of the microorganism, meanwhile, we can also deploy the semi-auto and full-auto controlling system according to the customer's requirements.
Technical Parameter

Model	LTCIP-0.5×3	LTCIP-0.8×3	LTCIP-1×3
Outside specification(m)	3.2×1.4×1.6	5×1.8×2	5.5×1.8×2.1
Equipment weight(kg)	≈550	≈650	≈800
Manual control Technical parameter	Inner shell:SUS304, δ3mm;Outside shell: δ1.5mm, PU insulation material, coil tube to heat, single circuit. Whole line bracket material:SUS304; Manually controlling, flow rate:10m3/h, pump lift:32m, power:3KW; Operating plate, Stainless Steel switch board.
Semi-auto control Technical parameter	Inner shell:SUS304, δ3mm;Outside shell: δ1.5mm, PU insulation material, coil tube to heat, single circuit. Whole line bracket material:SUS304; Manually controlling, flow rate:10m3/h, pump lift:32m, power:3KW; temperature controller system. Operating plate, Stainless Steel control panel.

Semi-auto Split Type CIP Cleaning System
Working principle
The heating way for the cleaning liquid is auto-heating. The operating principle: set the cleaning temperature through the temperature controller to control the steam control valve's opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopts the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced. The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.
Technical Parameter

Tank size		1000L-10000L
CIP tank type		Alkali tank, acid tank, hot water, clean water tank, water recycle tank
Cleaning recycle		Single circuit, double circuits, three circuits, four circuits
Heating method		Coil pipes inside, plate heat exchanger, tube heat exchanger
Automatic types and characters	Full Automatic	1. Flow rate auto control; 2.Temperature auto control; 3.Auto compensate the cip liquid level;4.Auto compensate the liquid concentrate; 5.Cleaning liquid transfer; 6.Auto alarm
	Semi-automatic control	1.Temperature auto control 2.With control panel, manual control the others
	Manual control	1.Manual operate on the cleaning process

Split Type Full-auto CIP Cleaning System
The operating principle of the full auto CIP cleaning system means that the tank body, pipelines, pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments, all cleanings are done at the closed circuit.
Detailed description
Technical
This system adopts the PLC program to control, with the colored touch screen to operate and display the whole process flow and also the each controlling parameter. The temperature of the cleaning liquid can be installed. It can set the PH value, the cleaning time, cleaning sequence, and also the refluence PH value. With the system malfunction alarm device.
The system consist of
CIP cleaning liquid storage tanks(include acid tank, alkali tank, hot water tank, clean water tank).
Two small single layer storage tank for concentrated acid and alkali.
CIP forward and return pumps.
Two diaphragm pumps for acid/alkali concentrate.
Heat exchanger(plate or tubular type).
One electrical control panel.
One set of controlling pipe and valve component.
One set of auto-performance components and parts and the electrical appliance material.
CIP cleaning liquid storage tank: 1000L-10000L.
According to the customer's requirements, we can make the double circuit, three circuit, four circuit and so on, meanwhile we can make multi circuit operating at the same time.
The Heating way: plate type, coil tube type, tubular type.
Technical Parameter

Tank size		1000L-10000L
CIP tank type		Alkali tank, acid tank, hot water, clean water tank, water recycle tank
Cleaning recycle		Single circuit, double circuits, three circuits, four circuits
Heating method		Coil pipes inside, plate heat exchanger, tube heat exchanger
Automatic types and characters	Full Automatic	1. Flow rate auto control; 2.Temperature auto control; 3.Auto compensate the cip liquid level;4.Auto compensate the liquid concentrate; 5.Cleaning liquid transfer; 6.Auto alarm
	Semi-automatic control	1.Temperature auto control 2.With control panel, manual control the others
	Manual control	1.Manual operate on the cleaning process
