20ton Batch Tyre Pyrolysis Recycling Machinery Saving Workin Area

Product Description

1.Major configuration

	Parts name	specification	qty

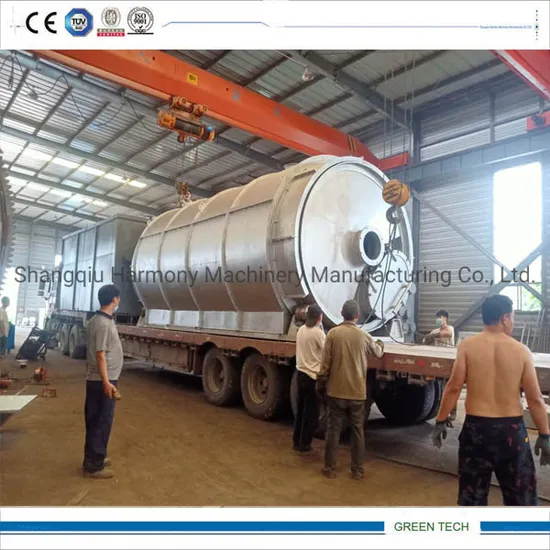

1.	Reactor	2800*6000mm	2
2.	Oil separator	1000*1500mm	2
3.	Heavy oil tank	900*1500mm	2
4.	Cooling tank	4000*6000*15000mm	1
5.	Light oil tank	1500*3000mm	2
6.	Water sealing tank	900*1500mm	2
7.	Dedust system	12000*3000mm	2
8.	Waste gas recycling device		2
10,	Electric control board	Big size	1
11.	Other parts

NO.	Name	Parameter
1	The raw materials:	waste tyres,/plastic, oil sludge
2	Daily capacity:	10 ton/day *2
3	The size of reactor	2800*6000mm 16mm thickness
4	Reactor material	Q345R
5	Average oil productivity:	30%-80%,
6	Average carbon productivity:	20%-35%
7	Plastic oil rate	30%-80%
8	pyrolysis time	6-8 hours
9	Discharge time	1.5 hour
10	Feeding time	3 hourS
11	Cooling time	3 hours
12.	Working pressure	Normal /slightly negative
13	Power	18 kw
14	Fuel	Coal. Wood, gas etc
15	Working area	1000 square meters
16	Total weight	35 000kgs
17	Reactor rotate speed	0.25-0.4/min
18	Noise	No less than 85DB
19.	Certificate	Ce,.iso,
20.	Carbon slag out	Automatic

2.Plant features
1. Two reactor work together , sharing cooling system
Saving working area and saving machine cost, two sets plant use one cooling system
This reactor heating pyrolysis another reactor cooling and slag out
Saving labours
2.This machine produces waste gas can be used for another reactor,saving fuel energy
3.Reasonable design , high safety performance and easy to operate
3. Pyrolysis principle
Put waste waste tyre/rubberf/plastic into reactor , after heating solid tyre/ruuber/plastic convert to oil gas, and oil gas come out of reactor ,when oil gas pas by oil-gas separator ,heavy oil having more dedust will deposit and go to heavy oil tank. Light oil gas will go to cooling system
,by cooling oil gas will come to liquid oil and go to light oil tank.
The non-liquid gas will go to water sealing, after water sealing waste gas will go to burning room ,burned to heating reactor for next pyrolysis
4.About oil rate for different material

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

5.You many interst

Pyrolysis plant (convert waste to fuel oil )	Type	Daily capacity	Used for	Final Product and usage
	Batch type	5Ton 10ton 12ton 15ton	Waste tyre Plastic Rubber Oil sludge Oily waste Others	Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil
	Semi-continuous type	15Ton, 20Ton
	Fully continuous type	20ton 30ton 60ton
	Special type	20Ton 15ton

6. About us
Shangqiu Harmony Machinery Manufacturing Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We are located in South chenfeng Road, Pingtai Economic and development Zone ,shangqiu city, Henan province, China, transportation convenient.
We have rich experience(8 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our company is about 133400 square meter ,and the workshop is 58000 squremeter ,we have lathes ,milling machines,grinding machines and planders , broaching machines ,pucnhing machines,NC lathes,CNC miling machies,digital control drill and other testing device.We have more than 100 workers including 3 high-class engineers,10 professors ,and 40 technicists.Our Machine have been sold to India, Malaysia, Pakistan, Bangladesh, Lebanon, Mexico, Europe ETC.

Item	Tire Oil
Density g/cm3	0.90-0.92
Freezing Point oC	-10
flash point oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500
