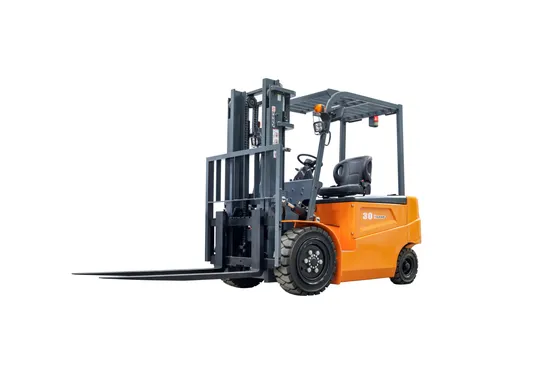

3.5t 3m Four Wheel Electric Truck Counterbalanced Hydraulic Forklift Sitting Driving Style

Product Description

Features
1. The car type electrical stacker can highly reduce the working intensity.
2. The handel adopts ergonomic design. All operations can be done through the handle.
3. The large capacity traction battery is durable, and can be recharged conveniently and rapidly.
4. The superpowered driving and lifting DC motor has good performance of speed regulation, and it can realize large starting and breaking torque function.
5. C type forming steel door frame will ensure steady while working.
Technical Parameters

KX-CPD SPECIFICATION
Item/Model		Unit	KX-CPD15	KX-CPD20	KX-CPD25	KX-CPD30	KX-CPD35	KX-CPD40
Main Characteristic	Drive mode	QD	Electric
	Driving mode	JS	Sitting
	Rated load capacity	kg	1500	2000	2500	3000	3500	4000
	Load center distance	mm	500
	Standard Lifting height	mm	3000
Size	Overall length (without fork)	mm	2010		2390		2530
	Overall length (with fork)	mm	3230		3610		3750
	Overall width	mm	1086		1130		1230
	Height when mast lowered	mm	2008		2075		2090
	Height to safeguard	mm	2130		2165		2220
	Height when mast extended	mm	3987		4035		4210
	Ground clearance	mm	113		130		133
	Wheel base	mm	1250		1520		1630
	Min.Turning radius	mm	1900		2090		2350
	Free lifting height	mm	125		130		140
	Tilting angle	°	6/10		6/10		6/10
	Front overhang	mm	400		480		458
	Front wheel track	mm	930		1055		1000
	Rear wheel track	mm	930		980		980
Performance parameter	Gradeability	°	15
	Driving speed (laden/unladen)	km/h	12/13
	Lifting speed (laden/unladen)	mm/s	210/420		340/450		340/415
	Max. tracyion	KN	9.5		13		16
Motor	Lifting motor	KW	5	8	11	11	13.5	13.5
	Driving motor	KW	6.8	10	12	12	16.5	16.5
Battery	Lead-acid battery	V/Ah	24/400	48/400	48/560	48/600	80/500	80/550
	Charger	V/Ah	24/50	48/60	48/60	48/80	80/80	80/80
Weight	N.W.	kg	2330	2850	3150	3920	4760	5570
Packing size	LxWxH	mm	3254x1086x2070	3608x1130x2155	3608x1130x2155	3610x1130x2165	3750x1250x2220	3750x1250x2220

Photos
Company Profile
Kaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items, including hoisting macchinery, financial equipments, electric winch, wlwctric truck, electric forklift and hydraulic car, etc.
Our comapny locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments. We have the ability of output RMB1500 million every year.
We aim to set up KAIXUN brand, creat top quality, offrt brst service and ensure customer satisfactory. We have passed the certification of ISO9001:2008 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.
Now we have been exporting 90% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc. Over 120 countries and regions. Our products are highly praiised by our clients.
