Topmac Brand 510 Lt Concrete Mixer with Winch
Basic Info.
Model NO.
TDCM510-11DL
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Vacuum
Structure
Spiral Type
Productivity
10cbm/Hour
Feeding Height
1400mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Keyword
Concrete Mixer
Model
Tdcm510
Power
Diesel Engine Drive Concrte Mixer
Application
Mixer Concrete
Transport Package
Nu Nude
Specification
Drum Capacity: 510L
Trademark
TOPMAC
Origin
Jiangsu, China
HS Code
8474310000
Production Capacity
1000 Unit/Year
Product Description

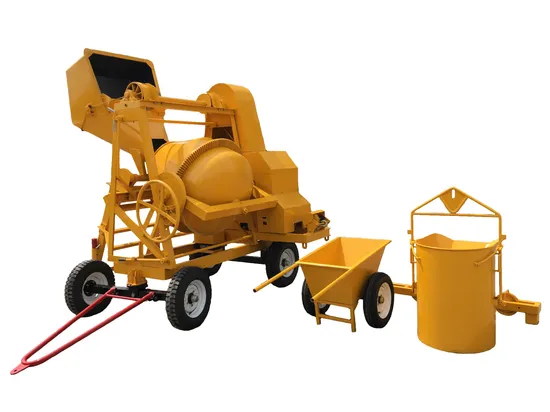

Tilting Drum Concrete Mixer With Winch/Elevator And AccssoriesModel TDCM510-11DL
Descriptions
Mixer with hoist system, Which is the mixer and winch designed together, 2 Functions can be realized in one machine. And single diesel engine can drive both the mixer and the hoisting system.
The hoist frame is fixed on the building, so the hoist system goes up with the building. It can lift not only the mixture ,also blocks,sand; or other construction material.
Advantages
1. Winch / Elevator: The winch is placed in an innovative way to minimize the operating hazards of the bucket and the barrel. Our design of the winch includes automatic breaking and a safety cover around the winch to reduce any damage to the sprockets in case the winch-rope breaks.
2. Other Features:
Wheel break
Drum lock
Squared drum nut with a screw to avoid bearing damage
All sprockets are manufactured by machines
A cover around the pinion gear, the steering gear, the cable buckets, and the
elevator to insure operator safety and durability of the mixer
Technical Parameters
| Model | TDCM510-11DL |
| Power | Changfa CF1100BNM Diesel Engine |
| Power source | Diesel Or Electric Motor |
| Drum total volume | 510 L |
| Unmixed capacity | 325 L |
| Mixed capacity | 200 L |
| Mixing time | 40 sec. |
| Capacity per hour | 6~8 cbm |
| Dimension | 1930×2300×2950mm |
| Steel thickness of drum | 4mm |
| Operation | Manual Feed |
| Weight | 1250kg/1300kg |
| Lift high | 24m |
| Lift weight | 150L |
| Double framework distance | 2000mm |
Container Loading Plan
| 1×20' container can be loaded with | 3 Units |
| 1×40H' container can be loaded with | 8 Units |
