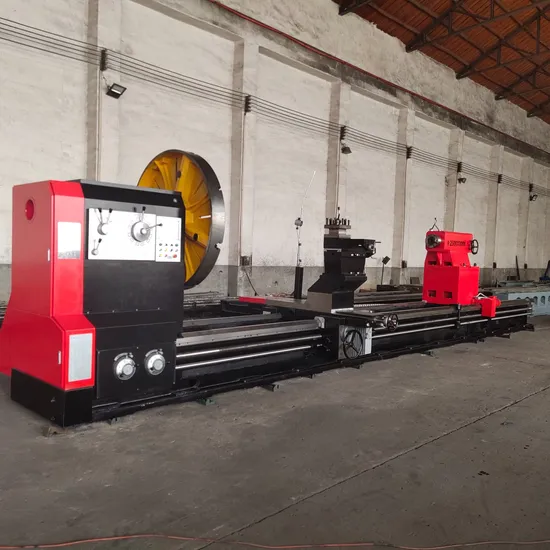

C61350X6m Conventional Horizontal Lathe Big Swing Diameter

C61350X6m Conventional Horizontal Lathe Big Swing Diameter

US$108,231.00 1 Piece (MOQ)

Basic Info.

Model NO.
C61350X6M
Type
Horizontal Lathe
Processing Accessory
Manual
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Condition
New
Color1
Red-Black
Color2
White-Black
Swing Diameter
350
Bed Widith
1100
Workpiece Weight
6tons
Transport Package
Directly in Container
Specification
6M
Trademark
dezhou
Origin
Dezhou
Production Capacity
200

Product Description

CW61350x6000MMx6T Horizontal Lathe Machine
Product Description

CW61350x6000MM
heavy-duty horizontal lathe
Standard accessories:
Four jaws chuck, dia. 1600mm;
Chuck wrench;
Tool post wrench;
Center;
Coolant box;
Steady rest 300-800mm;
Follow rest 50-260mm;
Leveling iron pads;
Foundation bots;
Working light;
English manual book;
12.Motorized tailstock.
Product Parameters

Model Unit CW61350x6000MM
Max. swing diameter over bed mm 3500
Max. swing diameter over carriage mm 3080
Max. length of workpiece mm 6000
Max. Weight of workpiece ton 6
Spindle hole diameter mm 130
Spindle hole taper Metric 140
Spindle forward turning kinds 21 Kinds
Spindle reverse turning kind 12 Kinds
n1 forward turning speed r/min 2-200
reverse turning speed r/min 2.24-178
Range of rest of each spindle turning 56 Kinds
Longitudinal mm 0.1-12
cross mm 0.05-6
Up rest mm 0.025-3
metric threads range mm 44 Kinds 1-120
Inch threads range 31 Kinds/24-1/4t.p.i
Modules threads range mm 45 Kinds/0.5-60
Diameter pitch threads 38 Kinds /1/2-56DP
Max. travel of lower tool holder mm 1010
Max. travel of middle tool holder mm 300
Max. travel of top tool holder mm 200
Quick longitudinal move speed of tool rest mm/min 3740
Quick cross move speed of tool rest mm/min 1870
Follow rest mm/min 935
Dia. of tail stock sleeve mm 180
Max. travel of tail stock sleeve mm 300
Taper of Tail stock sleeve Metric 80
Main motor power kw 22
Outer Dimension Length mm 9400
Width mm 2520
Height mm 4300
Bed width mm 1100
Machine Weight about kg 23000
Standard accessories: Four jaws chuck, dia. 1600mm; Chuck wrench; Tool post wrench; Center; Coolant box; Steady rest 300-800mm; Follow rest 50-260mm; Leveling iron pads; Foundation bots; Working light; English manual book; Motorized tailstock.
