Factory Direct Sale Broiler and Layer Farming Fully Automatic Complete Poultry Equipment for Chicken Farm

Product Description

Low Price Steel Structure Poultry House Chicken Farm Building Design
We can supply the follow system for broiler chicken poultry farm building:
1. Main feed line system:
(1). Function:
The system can convey feed from silo/hopper into each feeding line hopper

Name	Features
Feed Silo (Option 1) Manpower Hopper (Option 2)	Feed silo: 1).Silo with standard ladder and guard railing, safe and reliable; 2).Firm connection and good sealing performance; 3).Galvanized steel sheet, more than 10 years service life. 4).Size: 5T, 6T, 7T, 8T, 10T, 16T, 17T, 20T, 21T, 24T, 25T, 30T Manpower hopper: 1).Galvanized steel sheet; 2).Size: 600Kg, 800Kg
Driving motor	Taiwan brand Power:0.75Kw Voltage:380V/220V/others, Three-phase/Single-phase Frequency:50Hz
Feed conveying pipe with auger inside	Diamater of conveying pipe:Φ75mm, Material:PVC Helical spring auger is imported from South Africa, feed ability: 1400Kg/h(maximum) Conveying length:60m
Sensor	Imported from Germany

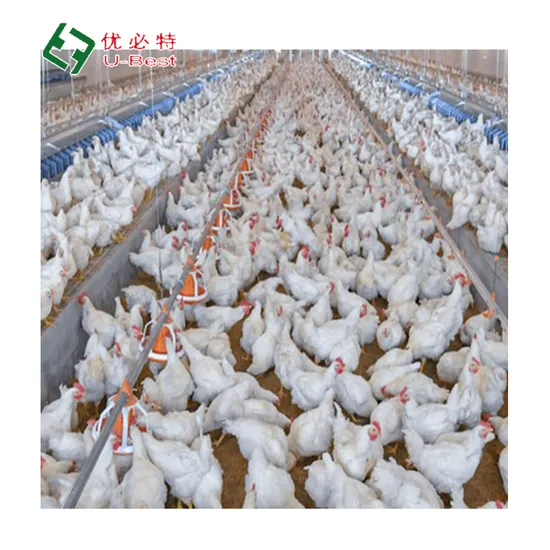

2.Automatic pan feeding system:

(1). Function:
The system can convey feed from vice hopper(feeding line hopper) into each feed pan automatically. We usually install one sensor inside one feed pan which is near to the motor end. When sensor doesn't touch feed, driving motor will start working and convey feed, when sensor touchs feed, driving motor will stop working.

Name	Features
V-shape bin(with hopper)	Bin volume:70-90kg, Material:hot-dip galvanized sheet Material thickness:1mm
Driving motor	Taiwan brand Power:0.75Kw/1.1Kw/1.5Kw, Voltage:380V/220V/others Three-phase/Single-phase, Frequency: 50Hz, AC current
Pan feeding lines	Feed pipe: Diameter of feed pipe: Φ45mm Material: hot-dip galvanized sheet pipe with >275g/m2 zinc coating amount Helical spring auger: imported from South Africa, feeding ability: 450Kg/h Feed pan: 14 grilles, pan bottom diameter-330mm, material-pure engineering plastic a. Different gears of feed amount, meeting eating demands of different period chickens. b. Accurate and quick to adjust feed flow, the principle is to catch two ears in the inner and pull them out adjust up and down. c. The pan bottom can be disassembled on the ground, which can be used for day-old chicks. d. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time. e. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding. Feeding line specification: 4 feed pans/3 meter, 3 feed pans/3 meter
Sensor	Imported from Germany time delay range: 0-2hours
Lifting&suspension system	It's very convenient to adjust feeding line height by winch.

3.Automatic nipple drinking system:

(1). Function:
The system can provide clean and fresh water to broiler chickens steadily, the water will be out when birds touch nipples.
Our nipple's rod can be movable in 360 degrees, easy to drink.
(2). Components:

Name	Features
Waterline front system	This front part is controller of water, it's main function is to adjust water supplying pressure and stabilize drinking volume, which is usually installed in control room, include: *Pressure regulating valve-make sure to supply stable water to drinking lines; *Filter-clean water and avoid blocking nipples; *Water meter-measure water usage volume. *Doser/Medicator-add medicine to drinking system automatically to prevent disease.
Pressure regulator	NEW DESIGN Good regulating stability, high switching performance; Water supply is sufficient&equality; Recoil cleaning with good cleaning result, save time and water; Good quality movable valve, easy to change.
Nipple drinking lines	Nipple: The outside shell is made of high quality plastic, the inner rod is made of high quality stainless steel. a. All nipples are anti-corrosion, service life over 10 years. b. Double-sealing structure, avoids water leakage and its bad influence to chicken house. c. Birds can drink from 360 degrees, easier to drink. d. Meeting drinking demand of different-period chickens. Drip cup: Single-arm design is more suitable for modern chicken raising idea. Square water pipe: lower possibility of water accumulation than round water pipe Drinking line specification: 15 nipples/3m, 12 nipples/3m
Water display level tube	Use high transparency and impact resistant material, sturdy and durable, convenient to watch water level.
Lifting&suspension system	Correct drinking line height js very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken growth, also waste water. It's very easy to adjust drinking line height by winch.

4.Ventilation system:

(1). Function:
The system controls poultry house inner environment, provides fresh air, proper humidity for your chickens,
ensuring your broilers provide maximum production.

(2). Components:
a.Ventilation fans:

Specifications	50'' butterfly cone fan	50'' axial flow box fan	36'' axial flow box fan
Flow amount(m3/h)	51020	43170	20800
Size(L*W*H)(mm)	1380*1380*1360	1380*1380*450	1000*1000*450
Noise level(db)	≤65	≤65	≤64
Power(Kw)	1.1	1.1	0.4
Voltage(V)	380/220/others	380/220/others	380/220/others
Current(A)	2.8	2.8	1.25
Weight(Kg)	100	89	54

b.Air inlets:
*Manuel control: Operater will check the pressure of chicken farm, control winch by hand until meet requirements.
*Automatic control: As per the request of difference chicken house pressure by controller, make the air inlet window
open and off automatically.

5.Cooling pad system:

(1). Function:
When the air goes through cooling pads, the heat will be taken down by the evaporation of water. So the air will be cooled
than before going into your poultry farms.

(2). Performance parameters:
Length* Width: Thickness: it can be customized
Frame: Galvanized Steel, Aluminium Alloy and Stainless Steel
Color: Brown, Brown&Green, Green, Black

6.Environment control system
(1).Function:
The system can set suitable mode according to different stage birds raising requirements to termperature, humidty through control on/off of ventilation fans,cooling pads, heaters,even air inlets to achieve the aim of automatic controlling of chicken farm equipment.
(2).Components:
a.Envrionment controller
Imported from Israel T607/T616/IMAGE II/VISION 24S are for your choice. they can achieve minimum ventilation-tansition ventilation,tunnel ventilation differenty.
b.Temperature sensor and humidity sensor
They can be connected to the environment controller to display indoor temperature and humidity.
c. control box
They have standard box body, use good quality electronic elements from great brands,such as CHINT, SIEMENS,also have ups and alarm device,for high low temperature power, failure.
7.Fogging system
Fogging System is effective for cooling, humidification, dedusting and disinfection of the poultry
house to provide a well-rounded environment for poultry farming.
8.Plastic slat and support system
New type reinforced structure and material made from modified and purified raw plastics with
high intensity and durability. It is anti-corrosive, UV-resistant, anti-aging and oxidation-resistant.
In addition, it is easy to clean and install with a long service life. It has a reasonable design of
hole size to prevent the birds from harm/hurt.
U-BEST Company information: Who We Are?
U-BEST poultry equipment company is a manufacturer located in Shandong Province, North China. We are highly experienced in the design, production, sales, and marketing of feed pan
and poultry equipment. U-BEST poultry equipment company is your one-stop shop for poultry farm businesses. We can provide silo,automatic pan feeding line system, automatic chain feeding line system,automatic nipple drinking system, automatic ventilation system, automatic cooling pad system,automatic environmental control systems, brooder and suitable heaters,etc.
Why Choose Us?
We offer high quality products that satisfy most customers. Our products are durable which means they are longer. Free layout designs for chicken farms. We are familiar with African and Asian markets. One-stop shopping saves your time and money. We have all many certificates:CE/ISO/SASO/SONCAP. Worldwide projects
Our products have been exported to many countries including Sri Lanka,Pakistan, Bangladesh,Palestine, Lebanon,Saudi Arabia, UAE, Qatar,Uzbekistan,Afghanistan,Vietnam, Philippines,Indonesia..Sudan,Algeria, Kenya,Zambia,Nigeria,Zimbabwe,Mozambique,Mauritius,Namibia,Mali..Honduras,Costa Rica,Haiti,Dominican, Trinidad and Tobago,Colombia,Peru,Chile,Paraguay,Guyana..
Australia,Fiji,Papua new guinea...Kosovo. Portugal, Spain, Italy...
We care moe of your chicken! Please contact us freely.
