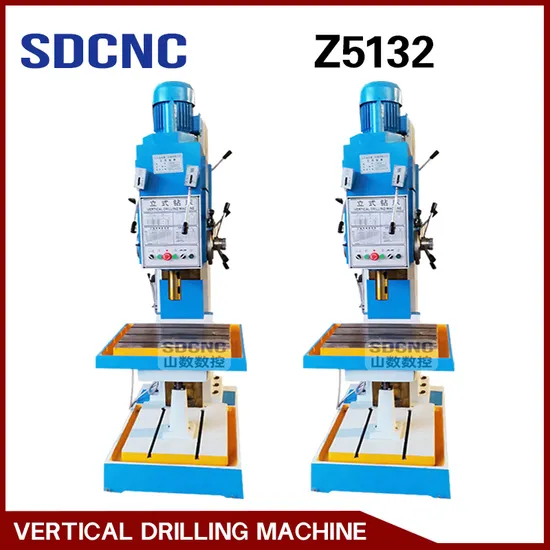

Z5132 Vertical Drilling Machine with Mini Bench
| US$3,860.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5132
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Dia
32mm
Max Feed Resistance
1200n
Distance From Spindle Axis to Column Gui
280mm
Spindle Travel
200mm
Transport Package
Wood Package
Specification
980*807*2302mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
98.00cm * 81.00cm * 230.00cm
Package Gross Weight
1250.000kg
Product Description
Product DescriptionProduct Parameters
Product main technical specifications:
| Specifications | Z5132 |
| Max drilling dia | 32mm |
| Max feed resistance | 12000N |
| Max. spindle allowable torque | 200N.m |
| Spindle taper | Morse No. 4 |
| Distance from spindle axis to column guideway | 280mm |
| Spindle travel | 200mm |
| Spindle box travel | 200mm |
| Spindle speed | 50~2000r/min (9) |
| The amount of feed(mm/rev) | 0.056-1.80mm/r (9) |
| Working table stroke | 310mm |
| Working table surface size | 400×550mm |
| Distance from spindle nose to table surface | 710mm |
| Main motor power | 2.2kw |
| Cooling pump flow | 25L/min |
| Overall dimension | 980*807*2302mm |
| N/W | 1250kg |
Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
