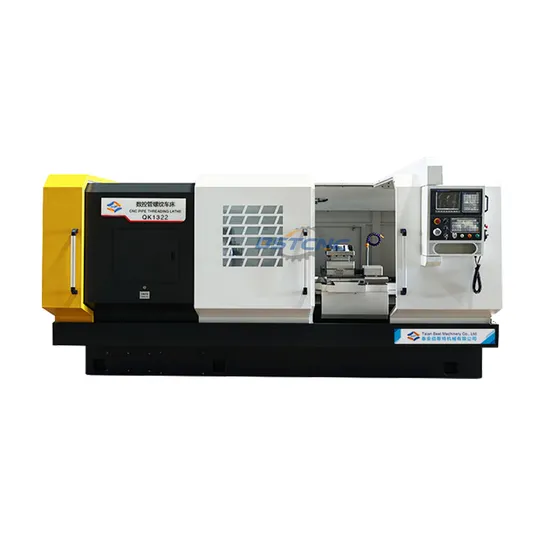

Qk1322 Automatic Big Bore Pipe Threading CNC Lathe Machine

Product Description

Product Description
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads, including metric,inch and taper threads. As well as having all the common functions of normal CNC lathe, such as processing inner and outer cylindrical surface, conical surface, spherical surface, curved surface, groove, end face, etc. This series lathe is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coup-ling and son on.
Product Parameters

ITEM		UNIT	QK1322
Max dia.swing over bed		mm	670
Max dia.swing over cross slide		mm	370
Max.length of work-piece		mm	1500
Pipe threading range		mm	φ50-220
Width of bed		mm	550
Spindle bore		mm	225
Spindle center height		mm	322
Power of spindle motor		KW	11
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	L:25-120 H:100-500
Max.traverse of X/Z		mm	X:350 Z:1250
X/Z rapid traverse		mm/min	4000/6000
Tailstock quill	Diameter	mm	100
	Travel	mm	250
	Taper		Morse NO.5
	Model		HAK21240
Turret	No.of tool stations		Vertical four-station
	Dimension	mm	32×32
	Turret indexing time	s	2.6
Chuck			K11-500 three jaw chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	3800×1900×1900
Machine weight		T	5.1

Standard configuration: Optional configuration:
-GSK980TC3 control system; -Siemens808D,Fanuc0i-TF, Syntec22TA.....
-3 jaws manual double chuck ; -Hydraulic chuck, Pneumatic chuck ;
-4 station electric tool post ; -6/8/12 station electric tool post or Servo , hydraulic and power turret;
-Manual tailstock; -Hydraulic / Pneumatic tailstock;
-Automatic lubrication; -Chip conveyor ;
-Coolant system; -Full-closed metal house;
-Semi-closed metal house ;
