Brigde Cutting Machine Sqc450-4D for Granite Marble Cutting
| US$17,000.00-18,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SQC450-4D
Usage
Granite, Marble
Application
Machinery & Hardware
Source Voltage
380V
Automation
Automatic
Cutting Ability
Low Speed
Control
PLC Computer Operatinal
Max. Blade Diameter
450mm
Max. Lifting Stroke
220mm
Worktable Size
3200*2000mm
Worktable Rotation Range(Optional)
0,90,0-360
Worktable Turn-Over Degree
85
Max. Processing Height
100mm
Water Consumption
3m3/H
Power of Main Motor
15kw
Total Power
21kw
Weight
5600kg
Transport Package
Standerd Packing
Specification
6000*4800*3000mm
Trademark
JOBORN
Origin
China
HS Code
84641010
Production Capacity
5000
Product Description

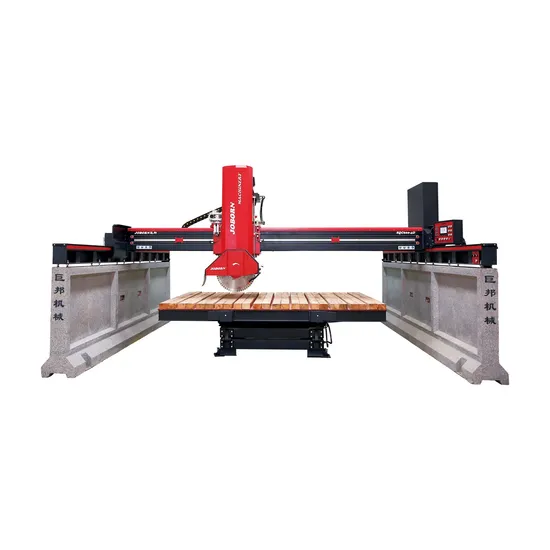

SQC450/600/700-4D is a PLC Controlled bridge saw with interpolated axes and human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device.With rotating and tilting work bench, the machine can fullfill the vertical and horizontal cutting.
Head can be 45° chamfering cutting.
The main spare parts of the machine adopt high-quality materials.
Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation. Specially engineered to cut and process of marble, granite, or other natural and engineered stones.
