CNC H Beams Drilling Machine Used for Seel Consrucure

Product Description

Product Description

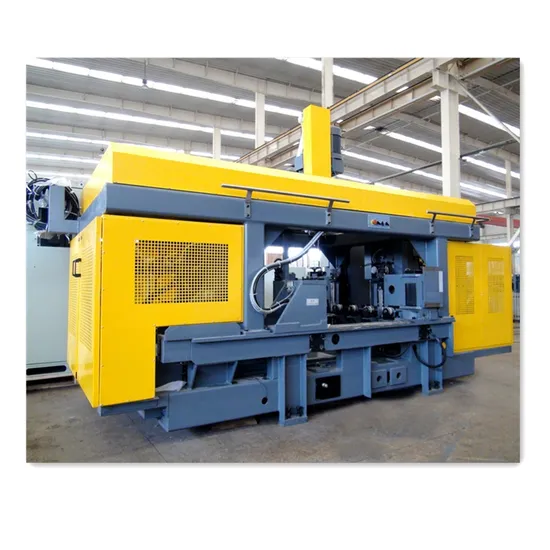

The CNC 3D drilling machine has three independent drilling power heads, namely vertical, left and right drilling heads. Each drilling power head contains two CNC axis drives and a digital hydraulic feed drive perpendicular to the workpiece direction. The drill bit and the main shaft are connected by a quick-change drill sleeve, so that the drill bit can be replaced quickly and accurately. Each drill bit can be independent and can complete the drilling operation at the same time. After a successful automatic clamping, all holes in the hole group can be processed.
Product Parameters

Model			SWZ1000	SWZ1250
Workpiece Size	H- beam (web plate height x flange width)	Max.	1000 x 500	1250 x 600
		Min.	150 x 75
	Length(mm)		≥2000
	Max. Thickness(mm)		80
	Drilling Diameter	Vertical Drilling	Ø12-Ø33.5
		Horizontal Drilling	Ø12-Ø26.5
Spindle Units	Qty. Of Spindle		One spindle on each side( top, left,right) Total 3 spindles
	Rotation Speed (rpm)		120-560
	Spindle Motor Power (kw)		3 x 4kw
	Max. Feeding Stroke(mm)		Left & Right 140	Vertical:325
	Feeding Speed(mm/min)		20-300
	Movement of left/right spindle(mm)		In the direction of workpiece length:520
			Above the vertical base-level:30-470	Above the vertical base-level:30-570
	Movement of top spindle(mm)		In the direction of workpiece length:520
			Beyond horizontal base-level:45-910	Beyond horizontal base-level:45-1160
Marking	Character Qty.		36
	Character Size		Ø10
Overall Dimension(L x W x H) mm			Aprox.4550 x 3050x 3520	Aprox.4800 x 3050 x3520
Total Power(KW)			34kw
Machine Weight(Kg)			7000Kg	8000Kg

Feature

1. Equipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head. 2. No need to set thickness of work piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency. 3. Frame made of sturdy electro-welded and normalized Plates and Square Beams. The structure with roller guides on which the sliders supporting the three spindles guarantees the total moving stability, and ensures the working precision;4. This machine can read AUTOCAD drawings and lofting software files automatically, such as DXF, NC1.5. Equipped with automatic lubrication system and air conditioner for electric cabinet. 6. Equipped with automatic feeding systems, which will clamp and feed material into machine automatically.7. PLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.8. Drilling units equip with famous brand spindle motor.9. The key mechanical, hydraulic and electric parts are all famous brands.

Machine Detail
Application:
The SWZ1000C three-dimensional CNC drilling machine production line is composed of SWZ1000C three-dimensional CNC drilling machine, feeding trolley and material channel. It can be widely used in steel structure industries such as construction, bridges, power station boilers, three-dimensional garages, offshore oil well platforms, tower masts, etc.
