Kysb Open Circuit Cooling Water Pump, Double Suction Pump

Product Description

KYSB Open Circuit Cooling Water Pump, Double suction pump
PRODUCT OVERVIEW:
According to market needs, KYSB series Split-case single-stage double suction centrifugal Irrigation Double Suction Water Pumps are developed in the broad absorption of advanced technology. Its remarkable characters are as follows: perfect, excellent general model, novel structure, convenient repair. KYSB type water pumps currently produced by our company have fall into more than 40 categories, nearly 400 specification products. We had improved pump impeller and impeller diameter to lead to its impact framework and increasing efficiency. In the spectrum performance range, we can provide any water pump that meets users' need for pump head and flow.
Sophisticated products and complete quality control, reach domestic advanced standard. We have IS09001 certificate so we can ensure its quality.
This series of water pumps are in accordance with lS02548C, GB321 6C, GB/T5657 standard.


APPLICATIONS:
This pump is widely used in city water supply and drainage, urban water supply; water supply and drainage of central heating system; iron and steel metallurgy, petrochemical refineries, paper mills, oil fields, power plant, airport construction, chemical plants, textile mills, sugar refinery, chemical plant, power plant water supply and drainage, the factory, mine fire water supply system, air conditioning system of water supply, farmland irrigation and drainage, and all other kinds of water engineering.

KYSB Irrigation Double Suction Centrifugal Water Pumps Widely used in many scopes High quality and best prices KYSB 5hp Diesel Engine Water Pompa
WORKING CONDITIONS OF KYSB WATER PUMP:
Rotation speed: 990, 1480 or 2960rpm Voltage: 380,6kv or 10kv Inlet and outlet diameter: 150-600mm (in accordance with GB/T17241.66-1998 flange standard) Flow: 68-3975m3/h Head: 6-230m Temperature: fluid temperature ≤80, ambient temperature≤40 Working pressure: 1.0Mpa (G) (Hsp≤75m) or 1.6MPa (Hsp>75) Medium permitted: clean water, contact to us for special requirement Pipe parts for seal: can't be installed under condition of above 0.03MPa (G)

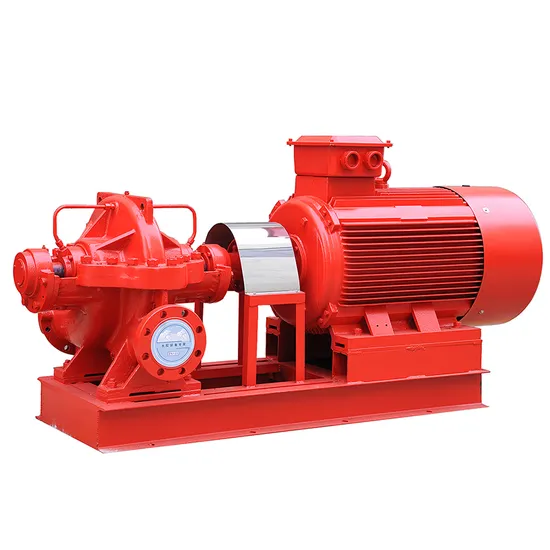

PHOTO OF KYSB WATER PUMP(DIESEL ENGINE CAN BE AVAILABLE):



MODEL MEANING OF KYSB WATER PUMP:
KYS B 200 - K 6 / 258 - F

KYS	Kaiyuan single-stage double-suction pump
B	New Model split centrifugal pump
200	Inlet Diameter (mm)
-	-
K	Impeller model K-Original impeller Z-Modification of impeller
6	1/10 of impeller specific speed
/	/
258	Specification code
-	-
F	Special type: Rotation direction of pump is anticlockwise.(Standard type:No marks)

ROTATION DIRECTION OF KYSB WATER PUMP:



STRUCTURE OF KYSB CENTRIFUGAL WATER PUMP:

Impeller	Equipped with double suction impeller, which release the axial force to lowest level. Most advantaged CDA hydraulic model. The pump body can be adjusted to transformed impeller so that it can improve its efficiency in different situations.
Pump body	Equipped with double volute case, it releases radial force. Force on shaft decrease and lead to longer service life. Convenient installation. Pump cover with automatic correction function. Relative pipeline position of motor and pump body is changeable so as to adjust to different occasions. There is on vortex beside inlet, stable operation and low wastage.
Bearing	Convenient maintenance, enlarged bearing, long service life. Bearing sleeve fixed up in bottom of bearing, which contributes to stationary position and its reliability, easy dismounting.
Shaft	Enlarged one, fine rigidity stable operation, novel structure. There is no damage on rotor even though short time of reversal and it is easily changed back into right direction. It is a complete sealed shaft that could not get in touch with liquid and has nothing to do with thread corrosion. Spare parts finely meet the pump specifications.
Base	Welded steel one for you chose which has the feature of impact resistance and fine malleability. It is portable and durable one.
Shaft Sealing	Branded mechanical sealing with no leakage, axle sleeve is stainless steel, which avoids corrosion. Wadding used meets requirements for environmental protection. Injection type of wadding can ensure current on-line service without stop the machine so that it can save loss of machine halt. Frictional power consumption decreases.

ASSEMBLY:


CURVE OF KYSB WATER PUMP:


PERFORMANCE PARAMETER OF KYSB200-K(Z)4 WATER PUMP:

Pump Type	Standards	Capacity		Head (m)	Speed (r/min)	Power (kW)		Efficiency %	NPSH r(m)	Weight (kg)
		(m3/h)	(L/S)			Shaft Power	Motor Power
KYSB200-K4	338	168 280 336	46.7 77.8 93.3	200 193 180	2960	145.2 207.2 245.7	250	63 71 67	10.5	369
	360	155 258 310	43.1 71.7 86.1	176 165 155	2960	121.7 167.9 195.2	220/200	61 69 67	10.3	365
	328	142 236 284	39.4 65.6 78.9	146 138 132	2960	95.7 132.3 157.0	160	59 67 65	10.1	361
	305	132 220 250	36.7 61.1 69.4	131 120 1 12	2960	81.2 108.9 119.1	132	58 66 64	9.9	359
	283	124 207 245	34.4 57.5 68.1	1 1 3 1 03 1 01	2960	66.9 89.3	110	57 65 63	9 7	357
	388	143 238 285	39.7 66.1 79.2	196 190 176	2960	123.1 175.9 206.9	220	62 70 66	10.3	368
	360	124 208 250	34.4 57.8 69.4	1 72 1 60 1 51	2960	96.8 133.2 158.1	160	60 68 65	10.0	363
KYSB200-Z4	328	156 196 236	43.3 54.4 65.6	136 133 127	2960	99.6 107.5 129.5	132	58 66 63	9.9	359
	286	114 190 224	31.7 52.8 62.2	109 102 98	2960	60.4 83.7 98.0	110	56 63 61	9.8	356
