Novasky Two Dimensional Through Wall Radar for Public Security & Hostage Rescue

Product Description

Company Profile
Novasky Technology Co.,Ltd. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search & rescue, high-end security and automotive safety. At present, the
company has subsidiaries in Malaysia, Beijing and Shanghai, and R & D centers in Changsha, Chengdu and Xi'an. Novasky is rewarded as national high-tech and "double-soft" certification enterprise.
Novasky Technology Co.,Ltd. has advanced scientific and technological talents and technologies in the fields of radar, optoelectronics, software and system engineering. With years of technology accumulation, the company has mastered key technology including weak life signal detection and tracking algorithms, ground complex environment target detection and tracking algorithms, low-slow and small UAV detection and tracking algorithms, multi-source perception fusion, electronic reconnaissance and countermeasures, etc. Focusing on the vision of "Building a Safe World", NOVASKY has developed core products and solutions for emergency rescue, counter-terrorism, judicial security and other fields.
Product Description

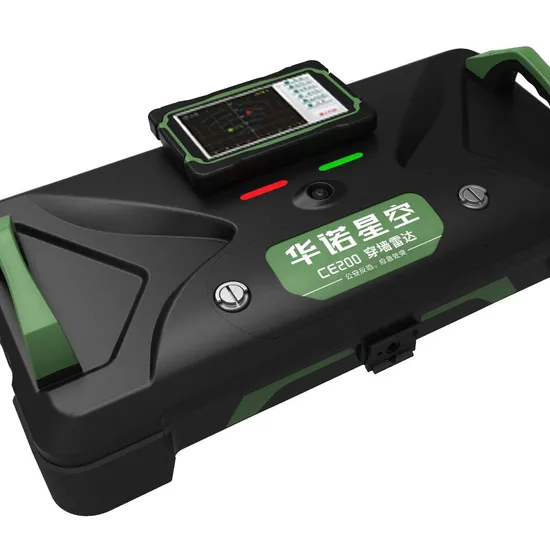

High Positioning Accuracy Two Dimensional Through Wall Radar CE200
CE200 through-wall radar is a high-performance human target search device launched by Novasky. The working principle is based on Doppler effects generated on the radar echo by weak movements such as human respiratory heartbeat, body shaking, limb swinging, and utilize radar signal processing algorithm to analyze and calculate the target position information behind obstacles. The product adopts the MIMO ultra-wide band radar system, which has the functions of high resolution in long-range, multi-target detection, and real-time two-dimensional positioning. It can quickly obtain the number and layout of targets behind walls and other obstacles, and is widely used in national defense and public security, border defense and other fields for target search task.
Product Features:
Two-dimensional Positioning: Accurately position the two-dimensional coordinates of targets, greatly improve rescue efficiency.
Strong Penetrating Performance: Able to detect live object behind wall/barrier of common material.
High Real-time Performance: Detect and display the moving targets in real time.
Multi-target Detection Function: Simultaneous detection and display of ≥ 5targets.
Strong Adaptability to Environment: Work in all time, no matter daytime or night. Work in all weather, no matter rain, haze, snow and ice or swirling dust.
High Positioning Accuracy: Ultra wide bandwidth, MIMO architecture, high resolution design, more accurate positioning. Product Parameters

Device Type	2D through wall radar
Penetrable Materials	Concrete, reinforced concrete, cement, plaster, mixed brick, wood, adobe, stucco and other non-mental standard building material
Detection Range	30m
FOV	120° in Azimuth, 90° in Elevation
Multi-target Detection	≥5
Protection Grade	IP67
Optional Accessories	Wireless remote display terminal, batteries
Display Information	2D coordinates, 1D echoes, quantity, dynamic and static target differentiation, trajectory, etc.
Operating method	Can be carried on the back of a soldier, handheld detection
Endurance	≥ 8h (2 batteries)
Mainframe size	≤630mm×330mm×170mm
Mainframe weight	≤5.8 kg (including battery)
Operating temperature	-20ºC~50ºC

Certifications
Our Exhibition
Test Equipment
After Sales Service
FAQ
1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
