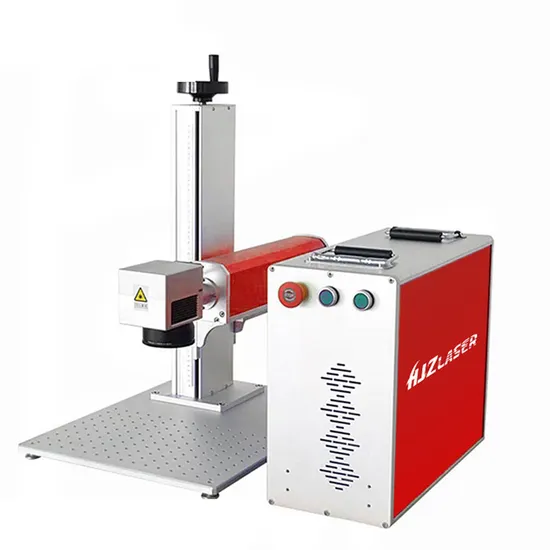

10W/20W 30W 50W Metal Plastic Fiber Laser Marking Machine

Product Description

10W/20W 30W 50W Metal Plastic Fiber Laser Marking Machine

Product descriptions :
1. Humanized design: We taken full consideration of the user experience to improve work efficiency and simplify operations of the laser etching metal machine.
2. High-quality imported laser source: Germany IPG 20W laser, stable laser beam, smooth and fine marking lines.
3. High-speed marking: shorten the time for processing the workpiece, and increase the order per unit time.
4. High-efficiency electro-optical conversion: zero-power coupling loss, no consumables, and no maintenance.
5. 10 years of operation life: this fiber laser etching machine for metal can meet the requirements of 24-hour continuous and stable processing.
6. High performance, high reliability control system: friendly interface, stable and reliable system.
7. Low power consumption: low cost, only 0.5 kW/h.
Important main parts :
Laser source : Famous Raycus brand
Control Software: EZCAD software( The latest version of EZCAD)
Galvo head : Sino-Galvo brand,use newest digital galvo head ,high speed and high repeatability with speed 7000mm
Applicable Fields & Materials:
This fiber laser etching machine is widely used in mobile button, plastic transparent button, electronic parts, IC, tools, communication products, bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.
Technical Data :

Laser Source : Raycus .Max .IPG brands .
Nominal average output power	10W - 30W 10W - 50W
Central emission wavelength	1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width, (FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption	600W
Gross Weight	60 kgs	70 kgs		200 kgs
Scanning Speed	0-7000mm/s
Marking Speed	0-5000mm/s
Marking size	110mm×110mm (F-theta 160)
Spot size	≤ 40 micron (F-theta 160)
Cooling unit	Air cooled
Pilot laser	650nm diode laser, visible red light for marking guide
Continuous working time	≥16h
Humidity	45~85% (no condensation)
Operating temperature	0~40ºC
Control units	Laser Mark (English Version)

Marking samples:
Wooden packing for export
Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.
FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
