Potato Onions Digger Sweet Potato Tractor Harvester Peanuts Garlic Carrots Harvester

Product Description

--Introduce Of Potato Carrot Garlic Cassava Harvester
This machine is used in conjunction with a four wheel tractor and is specifically used for harvesting crops such as potatoes, sweet potatoes, taros, and ginger. It can harvest single row, single row, three rows, or single row, double row, two rows. After harvest, the fruit is placed in strips, which is deeply favored by users.
Machine parameters:

Model	BF-01	BF-1A	BF-1B	BF-1	BF-2	BF-2B	BF-3
Number of rows	55-80	50-65	65-80	55-80	55-80	55-80	55-80
Line spacing (cm)	3-5	3-5	3-5	3-5	5-8	5-8	5-8
Weight (kg)	180	100	200	160	700	800	1200
Power requirements (hp)	22-35	8-15	22-35	22-35	50-80	50-80	70-120
Working depth (cm)	25	20	25	25	25	25	25
Working width (m)	0.6	0.6	0.6	0.6	1.6	1.6	1.6
Overall dimensions (cm)	165*85*45	85*65*60	165*85*45	150*90*70	220*190*45	220*190*45	265*210*110

Advantages of using this machine:
This product has good performance and high efficiency. It is mainly used for harvesting underground root crops such as potatoes, sweet potatoes, garlic, carrots, peanuts, etc. It has the characteristics of high harvest efficiency, low damage rate, light and fast operation without vibration, no grass blocking, fast soil leakage, simple structure, long service life, etc. Suitable soil types: sandy soil, sandy loam, medium cohesive soil. The special forced vibration system has good separation effect and strong adaptability. High net income rate, low damage rate, and fast cost recovery. Extracting residual mulch from the soil does not affect the growth of crops in the next quarter.
Installation and commissioning:
Insert the lower suspension wall pin shaft of the implement into the tractor suspension arm hole and pin the pin lock. The upper suspension arm of the implement is linked to the tractor central pull rod. You can adjust the depth of the implement by rotating the central pull rod.
The split transmission is fixed to the output shaft of the tractor, and the implement transmission is connected to the split transmission by a crank arm.
Application:

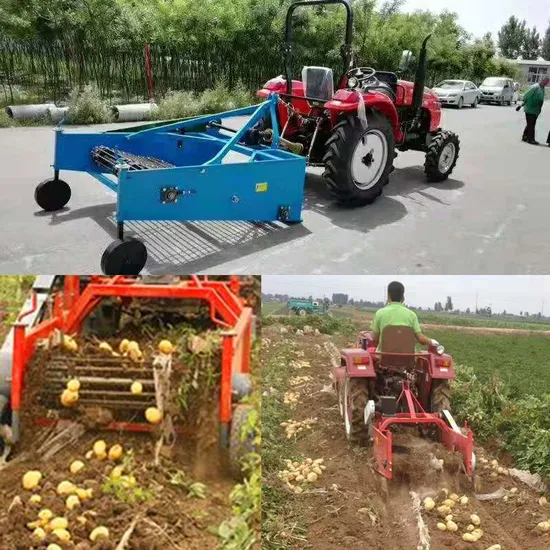

--Physical display
--Technical Maintenance And Storage
1. After the completion of each shift, remove the soil from all parts of the machine
2. Check the fasteners at all parts and tighten them in time if they are loose
3. Check whether each rotating part rotates flexibly. If it is abnormal, timely adjust and eliminate it
4. When the machine is not used for a long time, attention should be paid to preventing rain and contact with acidic substances to avoid corrosion. The blade should be oiled!
--Packaging & Shipping
Packaging: 1.We Send the machine picture which you order .
2.then packing it with standard export wooden box after you confirm machine is ok .
3.Different machines package will be different . we supply export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly .
Liquid Paste Vertical Form Fill Seal Pouch Packaging Machine Delivery : 1. Delivery by sea :After delivery it to seaport . will tell you the shipping time and arrive time . Finally , send you all original documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number
