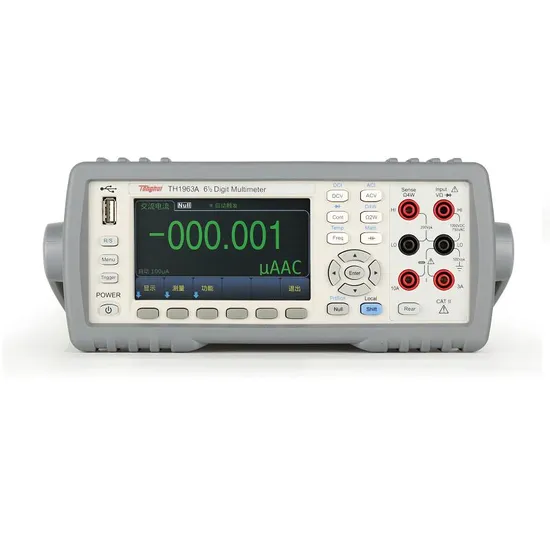

Tonghui Th1963A 6 1/2 Bit 1199999 Digits Reading Digit Multimeter

Product Description

Product Description https://ckt2017.en.made-in-china.com/contact-info.html
Brief Introduction
4.3-inch LCD color display, Chinese and English menu
6 1/2 bit 1199999 digits reading (TH1963)
5 1/2 digit 119999 digits reading (TH1953)
Test speed up to 1000 / s
Small size, front and rear input terminal, easy to shelve
Histogram, bar graph, trend chart display
AC low frequency signal can be tested down to 3Hz
Capacitance test function
Up to 5V diode test voltage
Stores data up to 10,000
Fast Chinese and English help
Technical Parameter

Model	TH1963		TH1963A			TH1953
Display	4.3-inch LCD color display
Display digits	1199999 digits reading					119999 digits reading
Measurement parameters	DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature
Display mode	Direct reading, histogram, bar graph, trend chart
Measurement speed	Up to 1000 times / s
Math function	Reset function, Min / Max / Average / Standard deviation, dB, dBm
Common features	Range	Trigger mode	Readinghold			Limit measurement
	Auto / Manual	LOCAL: AUTO / SINGLE / EXT REMOTE: IMMEDIATE / BUS / EXT	Yes			HI, Lo and IN (PASS), with sound beep
Parameters	Range / Test Range	Frequency	Highest annual accuracy TCAL ± 5°C			Highest temperature coefficient/°C
			TH1963	TH1963A	TH1953
DC voltage	100.0000 mV - 1000.000V(TH1963/A) 100.000 mV - 1000.00V(TH1953)		0.0035 +0.0005	0.0075 +0.0005	0.010+ 0.004	0.0005 + 0.0001
True RMS AC voltage	100.000mV - 750.000V	3 - 5Hz 5 - 10Hz 10Hz - 20kHz 20 - 50kHz 50 - 100kHz 100 - 300kHz	1.00 +0.03 0.35+0.03 0.06 + 0.03 0.12 +0.05 0.60 + 0.08 4.00 + 0.50	1.00 + 0.03 0.38 + 0.03 0.09 + 0.03 0.15 + 0.05 0.63 + 0.08 4.00 + 0.50	1.00 + 0.03 0.38 + 0.03 0.09 + 0.03 0.15 + 0.05 0.63+ 0.08 4.00 + 0.50	0.100 + 0.003 0.035 + 0.003 0.005 + 0.003 0.011 + 0.005 0.060 + 0.008 0.200 + 0.020
DC Resistance	10Ω-100MΩ,Test current:10mA - 500nA		0.010 +0.001	0.014 + 0.001	0.030 + 0.004	0.0006 + 0.0001
DC current	100μA - 10mA 100mA 1A 3A 10A		0.050 +0.006 0.050 +0.004 0.100 +0.004 0.200 +0.020 0.120 +0.010	0.050 + 0.005 0.050 + 0.004 0.100 + 0.004 0.200 + 0.020 0.120 + 0.010	0.050 + 0.008 0.050+0.004 0.100 + 0.004 0.200 + 0.020 0.250 + 0.004	0.0020 + 0.0005 0.0020 + 0.0005 0.0050 + 0.0010 0.0050 + 0.0020 0.0050 + 0.0010
AC current	100μA - 100mA	3kHz - 5kHz 5kHz - 10kHz	1.00 + 0.04 0.10 + 0.04	0.10 + 0.04 0.10 + 0.04	0.10 + 0.04 0.10 + 0.04	0.100 + 0.006 0.030 + 0.006
	1A	3kHz - 5kHz 5kHz - 10kHz	0.10 + 0.04 0.10 + 0.04	0.10 + 0.04 0.10 + 0.04	0.10 + 0.04 0.10 + 0.04	0.015 + 0.006 0.030 + 0.006
	3A	3Hz - 5kHz 5kHz - 10kH	0.23 + 0.04 0.23 + 0.04	0.23 + 0.04 0.23 + 0.04	0.23 + 0.04 0.23 + 0.04	0.100 + 0.006 0.030 + 0.006
	10A	3Hz - 5kHz 5kHz - 10kHz	0.15 + 0.04 0.15 + 0.04	0.15 + 0.04 0.15 + 0.04	0.15 + 0.04 0.15 + 0.04	0.100 + 0.006 0.030 + 0.006
Frequency	3Hz - 10Hz 10Hz - 100Hz 100Hz - 1kHz 100Hz - 300kHz Square wave		0.100 0.030 0.010 0.010 0.010	0.100 0.030 0.012 0.012 0.012	0.100 0.030 0.012 0.012 0.012	0.0002 0.0002 0.0002 0.0002 0.0002
Diode	5V,Test current:1mA		0.010+0.030		0.1+0.02	0.0010+0.0020
Breakover	1kΩ,Test current:1mA		0.010+0.030		0.1+0.02	0.0010+0.0020
Capacitance	1.0000nF 10.000nF - 1.0000mF 10.000mF		1.0+0.5 0.5+0.1 0.1+0.5			0.02 0.02 0.02
Temperature	PT100 (DIN/ IEC 751) 5 kΩ Thermistor		± 0.05°C ± 0.10°C
