China Manufacturer Automatic Craft Beer Bottling Line, Beer Glass Bottle Filling Machine

Product Description

Item	Parameter
Equipment model	HG-CGF-24/24/8
Washing nozzles	24
Filling nozzles	24
Capping nozzles	8
Bottle material	Glass Bottle
Bottle height	120-360mm
Bottleneck diameter	φ50-φ120mm
Pressure of air supplier	0.7MPa
Consumption tolerance	1.5 M3/min
Washing water pressure	0.2~0.25MPa
Power	7.5kw
Filling capacity	6000-8000 BPH
Weight	6.5 ton

24-24-8

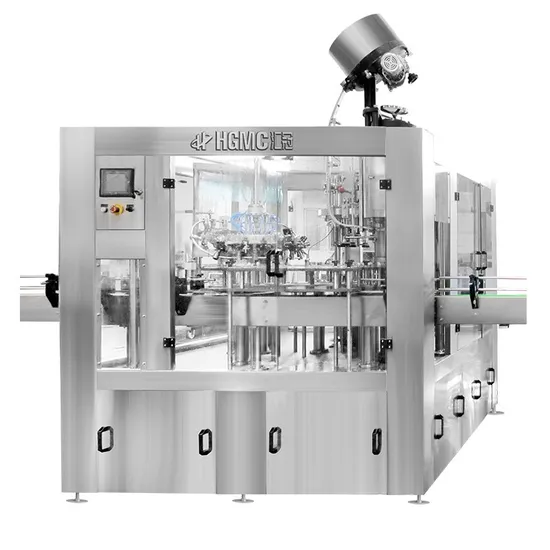

Glass bottle rinsing/filling/capping 3-in-1 Unit is a kind of professional filling machine integrator for beer
filling It is multifunctional which can be used for washing, filling and capping. It is a kind of advanced filling
machine integrator which is innovated following the process requirements of filling beer based on the importing
and assimilating the foreign advanced technology. It is applied mostly in washing, filling, and capping plastic cap
for beer, water and soft drink. It is the perfect selection to a large or medium-size brewery due to its reasonable
configuration, security of operation, dependability of running and its so convenient maintenance.


Advantage
1.The machine is our patent product.
2.It adopts true sense of isobaric filling principle and filling valve adopts high precision mechanical valve. It has
advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system,
realizing trinity of the machines, and control the washing, filling and capping process.
3.Filling part:
No bottle, no filling:The machine only starts to fill when there is bottle. It will avoid the waste of the bottle and
beer and the waste of the beer is less than 0.8%.The filling valve uses an external valve for true isostatic filling
The machine can achieve twice vacumming and twice co2 injection to keep beer quality.
4.Capping part:
The capping part can be designed according to the customers demand on the cappersTo realize the no bottle
no caps offering.
5.Foaming decive:
Equipped with foam device according to customer's requirements.High pressure water injection to push out
the air of the bottle neck to keep the beer quality.
6.PLC
The PLC from SIEMEMS. It has the advantages of perfect function, strong applicability and easy to learn and use.

Item	Production capacity	Filling method	Material	Dimensions
HG-GZ-4-1	100-300CPH	Isobaric filling	SUS304	1700*750*2200mm
HG-GZ4-1	500-700CPH	Isobaric filling	SUS304	1800*1200*2200mm
HG-GZ-12-1	1500-2000CPH	Isobaric filling	SUS304	2150*1300*1900mm
HG-GZ-20-4	6000CPH	Isobaric filling	SUS304	2200*1750*1900mm

Our Sevices
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available to you.
2. If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
3. HG engineers & technician are ready to your countries for services if you agree to pay the expenditure.
4. The machine will have 1 year warranty. During the warranty year, if any of the parts are not broken because of misoperation, we guarantee to replace free of charge. The warranty will start counting after the machine is sent out and you received the machine.
5. HG company has an independent team for after-sale service. If any emergency please call the saleman or our after-sale's manager.
FAQ
Q: Are you a manufacturer?
A:Yes, We have more than 20 years in brewing and beer filling equipment.
Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 1 year warranty for the whole machine
Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
