Surface Grinding Machines Price Surface Grinder Grinding Machine M618

Product Description

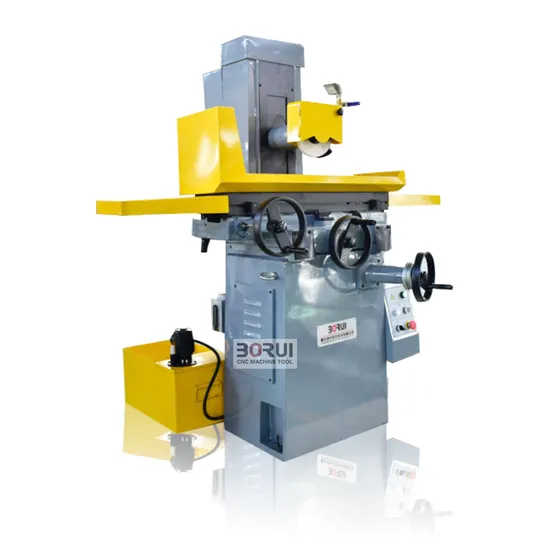

M618 Easy Model Surface Grinding Machine
Products Description.
Feature: Adopt the exceeding precise class 7(P4 level) ball bearing for spindle;
Bring transmission by synchronous belt, operating simple and convenient;
3-axis manual operation, X, Y axis can be electric auto operation;
High rigidity H-frame column with spindle center to table;
Enhanced ribbed full cast iron base;
Enlarged spindle housing for heavier grinding;
Cartridge w/4 pre-load class 7 (P4) bearing;
Roller steel balls on linear table ways for easy and smooth longitudinal movements;
Double -V saddle ways for rigidity;
Manual lubrication system;
Standard accs. Tool box, tool, puller for adaptor, grinding wheel wheel dresser, flange, balancing shaft, balancing stand, drain pipe, water inlet pipe, machine cushion, permanent magnetic chuck, diamond pen, water cooling system.

Model				M618
Working table	Table Size (L× W)		mm	460×180
	Max movement of working table(L× W)		mm	500×190
	T -Slot number×width		mm	1×14
Grinding head	Max distance from spindle center to table surface		mm	335
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ180×13×Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3440
Feed amount	Vertical feed on handwheel	Per revolution	mm	1.25
		Per graduation	mm	0.01
	Cross feed on handwheel	Per revolution	mm	2.5
		Per graduation	mm	0.02
Motor power	Spindle motor		kw	1.1
	Coolant pump motor		w	40
Working precision	The parallelism of working surface to base level		mm	300:0.005
	Surface roughness		μm	Ra0.32
Weight	Net		kg	650
	Gross		kg	750
Overall dimension(L×W×H)			mm	1550x1150x1590
Package dimension(L×W×H)			mm	1000x1150x1760

Details Images.
Company Profile.
FAQ.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send
us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece
drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
