Mini 2.2 Kw Agricultural Machinery Silage Chopper Chaff Cutter

Product Description

Mini 2.2 Kw Agricultural Machinery Silage Chopper Chaff Cutter

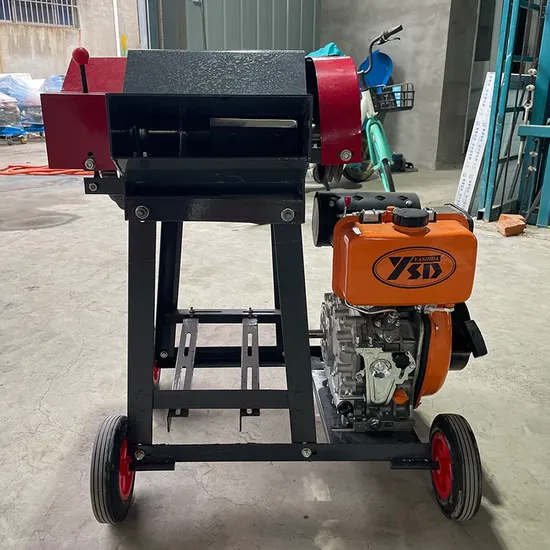

Our Vanmay Chaff Cutter Machine 9ZP-0.4 is widely used for cutting fresh (dry) grass, fresh (dry) corn straw, wheat straw, rice straw, stalks, other crops straw and etc...It is the best choice for family or dairy farm to breed animals, such as cow, sheep, deer, horses, rabbit, etc...Our Chaff Cutter Machine 9ZP-0.4 is with features of all compacting steel structure, small volume, single phase power supply, light weight and easy operation.
Product Description

1. Wide Application

Contact Us

2. Chaff Cutter Machine Details

Contact Us

Chaff Cutter Machine Features:
1. With high cutting rate and less electricity consumption;
2. Any OEM & ODM is highly welcomed, and any customization is also accepted;
3. Our Chaff Cutter Machine can be driven by high quality Electric Motor (With Copper Wire), Diesel Engine, and Petrol/Gasoline Engine for your more choices according to your local situations;
4. Feeding rollers in our Chaff Cutter Machine are made by Casting Iron with longer service life;
5. Discharging size can be adjusted easily;
6. We use the high quality blades for our Chaff Cutter Machine, not the ordinary blades, which is 3 times of the ordinary blades' service;
7. High-strength bolts are used for connection to provide safe and reliable operation in our Chaff Cutter Machine;
8. Steel frame structure, small volume, light weight, and convenient to move;
9. Unique adjustable speed gear box structure, easy and precise adjustment of grass length, reliable sealing, good lubrication;
10. Advanced feeding and conveying mechanism is controlled by a switch, easy to switch.

3. Technical Specifications

Contact Us

9ZP-0.4 Chaff Cutter Machine
Item Name	Chaff Cutter Machine
Model No.	9ZP-0.4
Capacity	0.8-1.0t/h
Matched Electric Motor Power	2.2/3.0kw
Matched Diesel Engine Power	4.0hp
Matched Gasoline Engine Power	7.0HP
Voltage	220v/Customized
Blades Quantity	4pcs/6pcs
Suitable Raw Material for Processing	all kinds of grass, millet straw, rice straw, corn silage, wheat stalk, corn plants, and etc...
Cutting Length	10/15mm
Spindle Speed	1060r/min
Inlet Feeding Rollers Rotation Speed	400r/min
Feeding Inlet Width	235mm
Inlet Type	Automatic Type or Manual Type for your different choices
Main Machine Weight	55kg (without driven engine )
Overall Dimension	1300(L)*1150(W)*800(H)mm
Packing Size	600(L)*500(W)*390(H)mm
Electricity Consumption	1.8Kw/h

4. Installation Steps

Contact Us

5. Factory Show

Contact Us

6. Customers' Visiting

Contact Us

Our Henan Vanmay Industry Co.,Ltd, which is located in Zhengzhou city, Henan province, China has built a good and high reputation on building the most cost-effective machinery equipment in China. Vanmay is recognized globally as an expert in providing industry leading process design, engineering and manufacturing to a variety of industry machines. Whatever you require, our Vanmay's professional team can design and manufacture your machines for your application.
Our Main Products: Chaff Cutter Machine, Grinding Machine, Grass Chopper Machine for Animals Feed, Silage Baler & Wrapper Machine, Mixer Machine for Animals Feed, Pellet Machine for Animals Feed, Animals Feed Grinder Machine, Rice Mill, Paddy/Wheat Harvester, and etc...

Our Goal: Providing our clients the best solution, quality, price, and after-sales service.

From initial feasibility report and testing, to engineering, manufacturing, and after-sales services, we bring our great passion for quality and service into everything we do. Sincerely do hope that we can cooperate with you to maximize the mutual benefits of all parties involved, and foward to a beautiful and brightful future together.

7. Package & Shipping

Contact Us

8. FAQ

Contact Us

Q1: What is the MOQ for your Chaff Cutter Machine?
A: Our MOQ is 10 sets. And any order quantities are highly appreciated.
Q2: Can I get a free sample of your Chaff Cutter Machine?
A: Yes, surely, we would like to provide the sample for you. But, we are afraid that you will pay for the sample and delivery cost.
Q3: What is your guarantee period for your Chaff Cutter Machine?
A: Our Chaff Cutter Machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.
Q4: Do you accept OEM & ODM?
A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the Chaff Cutter Machine. Even we are willing to design the color, logo, packages for you.
Q5: Can I test your Chaff Cutter Machine with the raw material when visiting your factory?
A: Yes, surely, any testing our Chaff Cutter Machine with the raw material is highly appreciated.
