Multi purpose high machinery hydraulic Z3032 Universal arm radial drill machine

Product Description

Small Bore Drill Machine Z3032 Mini Drilling Machine Product Description
The main performance characteristics:
With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc Product Parameters
Product main technical specifications:

Model	Z3032×7	Z3032×7P
Max. Drilling capacity(mm)	32	32
Max. Tapping capacity(mm)	Cast lron 20 Steel16	Cost lron20 Steel16
Distance spindle axis to column generating line	300~700	300~700
Diameter of column(mm)	150	150
Spindle taper	MT3	MT3
Spindle travel	130	130
Spindle speeds range(mm)	100~1600	100~1600
Spindle speeds series	8	8
Spindle feeds(r/min)	0.08\0.14\0.23	0.08\0.14\0.23
Rotary angle of rocker in hirizontal plane( °)	360	360
Distance between spindle nose to working surface of base(mm)	275~680	275~680
Dimension of worktable(mm)	250×250×250	250×250×250
Diameter of base(mm)	1050×550×120	1200×625×155
Overall size(mm)	1235×550×1195	1235×625×1230
Motor(w)	750 or 1100	750 or 1100
G.W./N.W.(Kg)	390/310	580/500
Packing dimension(cm)	122×62×128	127×69×137

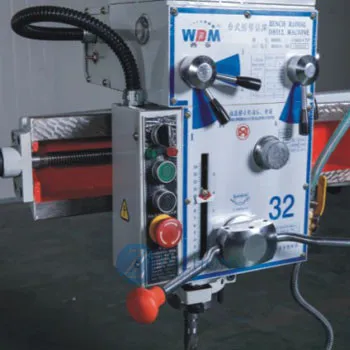

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
