5.5kw 300 Bar New Products Energy Saving Air Compressor for Scuba / Paintball /Fire Breathe
| US$4,781.00-5,000.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BW265
Max.Head
80-110m
Max.Capacity
200-300 L/min
Pressure Medium
Oil
Type
Desktop
Position of Pump Shaft
Vertical Edge
Certification
CE
Model No.
Bw265
Compressed Medium
Air
Ambient Temperature
- 5~+50ºC
Safety Valve Setting Pressure
220/330 Bar
Capacity
265L/Min
Number of Cylinders
3
Power
5.5 Kw
Rotating Speed
1440r/Min
Voltage Frequency
380V/50Hz
Noise
≤ 80dB
Certified
Ce /CCS
Weight
145kg
Transport Package
Carton/Plywood
Specification
1000mm*570mm*720
Trademark
UNICARER
Origin
China
HS Code
8414804090
Production Capacity
1000000/Year
Packaging & Delivery
Package Size
80.00cm * 60.00cm * 45.00cm
Package Gross Weight
145.000kg
Product Description

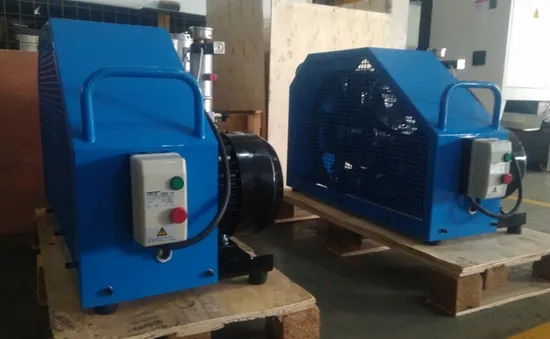

High pressure air compressor BW265Product Introduce
Germany-based BW265 high pressure air compressor is W-shaped layout of three compression piston compressor cold wind, it will air a free state, the highest compression to 30MPa, separator and filter unit in the flowing After the device, in addition to removal of water contained in the high-pressure gas, oil and impurities parts, high pressure cleaning and tasteless gas output is trustworthy, secure and reliable breathing air and supporting all types of engineering systems, the unit is equipped with motor overload device make sure you set the pressure range of work to ensure the safety of operating personnel and crew, stepless regulating valve unit finally become a safety barrier. Records crew working hours timer, recording unit running time, in order to provide maintenance basis by the report. End -stage cylinder sleeve using homemade recipes, cast alloy, wear resistance, low coefficient of thermal expansion, easy assembly and disassembly. The unit is simple structure, easy maintenance, low speed low noise, safe and reliable quality. Air quality in line with national GB18435-2001 "diving breathing gas standards, " and in line with European EN12021 "international breathing air standards. "
Technical Data Sheet
| Basic technical parameters | |
| Model | BW265 |
| Medium | Air |
| Ambient temperature | - 5~+50ºC |
| Safety valve setting | 330 bar |
| Working Pressure | 330 bar |
| Capacity | 265 l/min |
| Number of Compression stages | 3 |
| Number of Cylinders | 3 |
| Drive | Motor |
| Size (D*W*H)mm | 900mmX540mmX650mm |
| Weight | 145kG |
| Breathing air | EN12021 EU EN 12021 |
| Product Certification | Exported EU CE certifiction ,CCS Solas ,ISO 9001 quality system |
| Drive motor basic parameters | |
| Type | three-phase EM |
| Power | 5.5 kW |
| Speed | 1440 r/min |
| Insulation class | B |
| Volt / Frequency | 380V / 50 Hz |
| Noise | ≤85 db |
