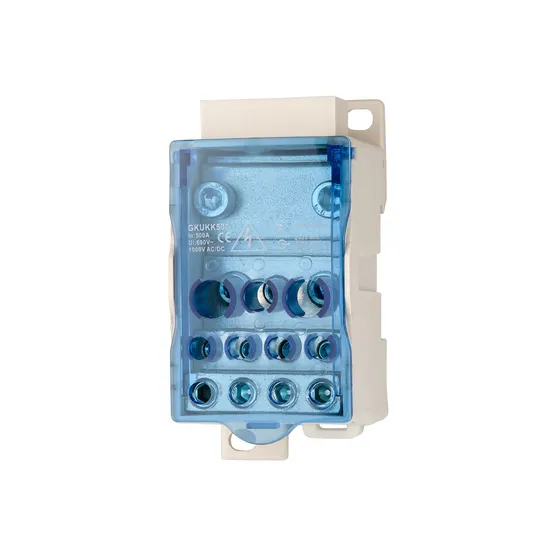

500A Ukk Cable Box Junction Box Terminal

Product Description

Material:
• Material:made from PA Nylon;
• Grade of flame retardant: UL94V0;
• Metal material: brass platedtim;
• The transparent cover good for see the cable is areliable connection
Advantages of new design:
1 it is easly to click and taken off, no other tools is needed .
2 it grasps to dinrail tightly ,won't slide on the dinrial
3 it ont be affected by environment whether it is hto or cold,avoid broken of mounting feet
Parameter:

Model	Spec.		Conductors with Starfix Temules X-section(mm2)	Quantity of Hole(pcs)	Outline Dimension(mm)
GKUKK80	80A	690V IEC	in:6-16	*1	30*69*49
			out:2.5-6	*4
			out:2.5-16	*2
GKUKK125	125A	690V IEC	in:10-35	*1	29*77*46
			in:6-16	*4
			out:2.5-16	*6
GKUKK160	260A	690V IEC	in:10-70	*1	29*77*46
			in:6-16	*4
			out:2.5-16	*6
GKUKK250	250A	690V IEC	in:35-120	*1	47*96*50
			out:6-35	*2
			out:2.5-16	*5
			out:2.5-10	*4
GKUKK400	400A	690V IEC	in:95-185	*1	47*96*50
			out:6-35	*2
			out:2.5-16	*5
			out:2.5-10	*4
GKUKK500	500A	690V IEC	in:3-8~15-24	*1	49*96*50
			out:6-35	*2
			out:2.5-16	*5
			out:2.5-10	*4

Intallation Methods:
It can be mounted on rail or fixed with screws.
YueQing GaoKe environmental electric Co., Ltd ,with more than 25 years of experience and constant innovations, has become one of the leading manufacturers in the field of electrical goods.
GaoKe locates in the famous base of electrical appliance industry. Over 200 employees focus and work in various fields, like, PDD,RDD, PMC, QC, PD and SD.
We are committed to technological innovation, and pay attention to intellectual property protection. Up to now the company had been authorized 35 patents ,including 3 invention patents,25 utility patents and 7 design patents .There are also 3national or provincial high and new technology enterprise awards .Fully based on ISO 9001 system, we improve the design concept, standardize management and operation process to ensure product quality.
As an internationally acting company, we supply our products to many countries worldwide. The export has become an important, solid part of daily sales activities.
Together with our customers and partners home and abroad, we design and create smart energy solutions. They are widely recognized, and had been internationally patented.
For any information and advice, the Gaoke team will always be there for you! Why should we choose Gaoke products?
A: Gaoke is a leading manufacture in the field of terminal blocks, connecting bars, din rail and copper accessories. We also provide customized solutions to meet various demands.
How can we ensure product quality from Gaoke?
A: Gaoke believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From raw material supplier audits, incoming material inspection to quality control and final packing Every step is executed strictly to assure our product quality.
How long is the lead time?
A: Any order less than 500000 pieces can be completed in 30days. Tags: Brass Terminal Block, Combinated Busbar.
