Cycjet Lf30f Laser Marking Machine for Electrical Products
| US$13,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LF30F
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Name
Fly Laser Printer
Application
Plastic Pipes
Capacity
30W
Information Input
Touch Screen and USB
Pulse Frequency
20 kHz - 100 kHz
Marking Range
110 mm X 110 mm (Can Be Customized)
Working Voltage
110-240V
Power
800W
Package
Wooden Case
Transport Package
Wooden Case with Foam
Specification
155X55X56cm
Trademark
CYCJET
Origin
Shanghai
HS Code
8456110090
Production Capacity
300units/Month
Product Description

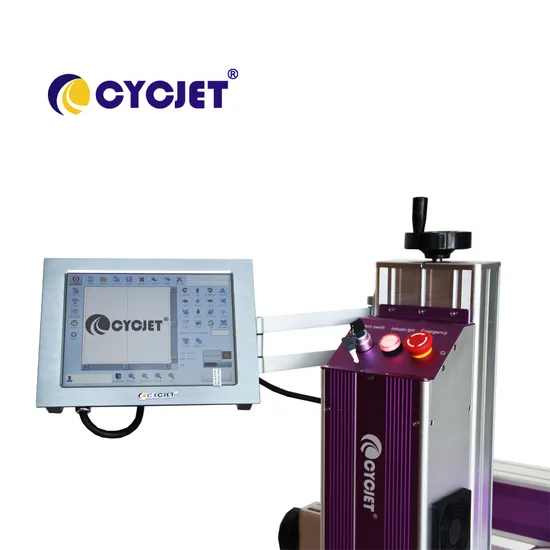

Product Picture:Components of Machine:
Applications:
This type laser marking machine was designed for PVC/PPR/PE/HDPE Pipe Production Line, it is a professional laser marking machine to print brand, date and other information on the pipe surface. The pipe surface color will change after heat printing, the code can not move or earase it. No consumer goods, less production cost
Also suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage:
1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill
4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter.
5, The code can not move or erase it
6, No consumer goods, less production cost
Terms of Payment:
T/T, LC
After-sale Service
1, Warranty Valid: 12 Month
2, Online or Spot Training
Details and Specifications:
Specifications | Output Power: 30W Beam quality M2: <2 Laser wavelength: 1064 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W |
| Delivery&Package | Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box |
