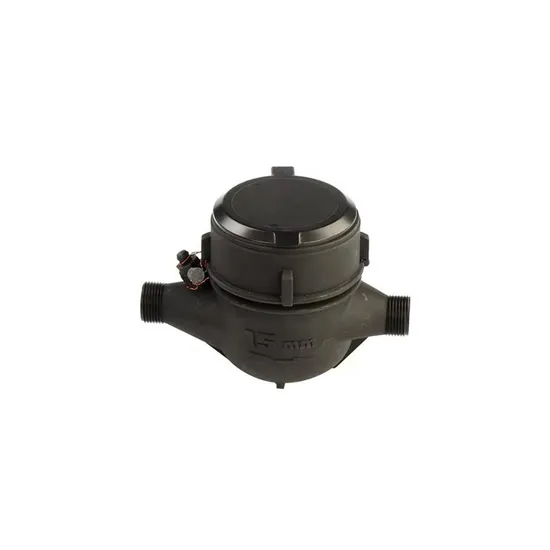

Plastic Nylon Material Body Multi-Jet Dry-Dial Remote Reading Water Meter

Product Description

Plastic Nylon Material Body multi-jet dry-dial remote reading water meter

Product Description Product features:
Multi-jet, Dry dial
Body material: Nylon Plastic
Sizes: DN15 to 50mm( 1/2" - 2"), available for cold water (40°C)
Accuracy: ISO4064, Class B standard
Easy for interchange & maintenance
Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Measuring accuracy conform to ISO4064 Class B standard
Selected high quality & nontoxic plastic(Nano) materials for steady,reliable characteristic and good looking.
Application:
This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.
MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70
32	A	12	6.0	600	240	0.0001	99999
	B			480	120
40	A	20	10	1000	400	0.001	99999
	B			800	200
50	A	30	15	4500	1200	0.001	99999
	B			3000	450

Detailed Photos
Factory Shows
Installation Instructions
Our Service
Certifications
