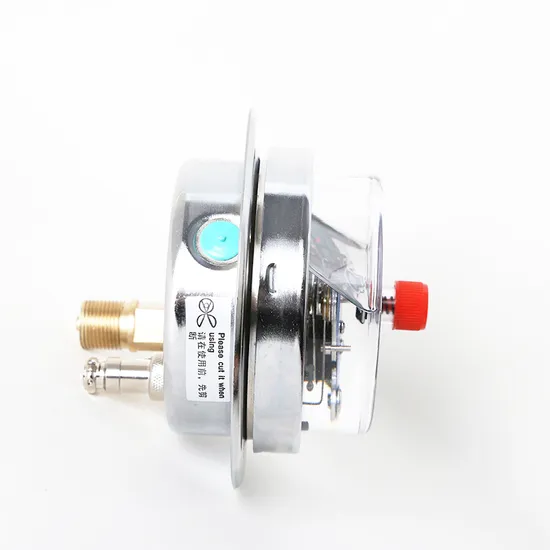

100mm 4" Stainless Steel Shock-Resistant Magnetically Assisted Gold-Plated Electric Contact Pressure Gauge with Oil Filling Aviation Plug 220V-380V 30va-50va

Product Description

ApplicationThe shock-resistant electric contact pressure gauge has excellent performances such as pulsation resistance, impact resistance, and vibration resistance. It is widely used in petroleum, chemical, chemical fiber, metallurgy, power stations and other industries, to measure the pressure of various fluid media in the process that require pulsation, impact or vibration resistance. Equipped with an electric contact device, this pressure gauge can be used for on-site indication and control the circuit C contact switch of the pressure control system.
Thereby achieving remote transmission and automatic control. When the pressure reaches a predetermined value, the control circuit can be turned on or off to achieve the purpose of automatic control. The shock-resistant structure of this pressure gauge can effectively suppress the jitter of the pointer, protect the contacts, make the indication clear, and the electrical signal switching reliable and stable. Features1. One contact device is a magnetically assisted gold-plated contact contact, which is surface contact, reliable in contact, and resistant to ablation.
2. Another contact device is reed switch contact, which can transmit signals well under low voltage (24V, 12V) without arcing phenomena. It has fast response speed and long service life. Its advantage is that the contact switch is isolated from the atmosphere, and there is noble gas or vacuum state in the tube, which can reduce the oxidation and carbonization of the contact. The sealed design can prevent external steam and dust impurities from corroding the contact. The reed switch contact enables the electric contact pressure gauge to be used in low- voltage systems, which makes the low voltage system intelligent. ParametersDiameter: φ100mm, φ150mm
Accuracy: 1. 6%
Working Pressure: Steady: 3/4 X full scale value Fluctuating: 2/3 X full scale value Short Time: Full scale value Maximum power: 50VA, 10VA (Reed switch contact)
Working voltage: AC220V | AC380V I DC24V
Control Method: Upper and lower limits
Protection: IP65
Connection Thread: M20x1.5, PF(PT, NPT)1/2, etc.
Damping Liquid: Methyl silicone oil
Elastic element: Qsn8-0.3 brass I SUS304 I SUS316L
Connection Material: HPb59-1 brass I SUS304 I SUS316L
Movement: Brass I SUS304
Case: SUS304 | CR1 steel sheet
Window: PC glass

Scale Unit	Pa	KPa	MPa	bar	kgf/cm²	atm	mmHg	Lbf/in²(psi)
Pa	1	0.001	0.000001	0.00001	0.00001	0.00001	0.0075	0.000145
KPa	100	1	0.001	0.01	0.010197	0.00987	7.50062	0.14504
MPa	1000000	1000	1	10	10.1972	9.86923	7500.62	145.038
bar	100000	100	0.1	1	1.01972	0.98692	750.062	14.5038
kgf/cm²	98066.5	98.0665	0.098067	0.980665	1	0.9678	735.556	14.2233
atm	101325	101.325	0.101325	1.01325	1.03323	1	760	14.6959
mmHg	133.322	0.1333	0.000133	0.00133	0.00136	0.00132	1	0.01934
Lbf/in²(psi)	6894.76	6.89475	0.00689	0.06894	0.07031	0.06805	51.7151	1

Company Profile
Zhejiang Bohong Intelligent Technology Co., Ltd., situated at 1118 Xin'an Road in the Nanxun Economic Development Zone of Huzhou City, Zhejiang Province, is a modern enterprise designed in a garden-style aesthetic. This venture is a joint investment by Zhejiang Xingxiangyi Precision Manufacturing Co., Ltd. and Zhejiang Hakin Instrument Co., Ltd. Its workshop spans 12,000 square meters. Our company possesses more than 200 sets of various production and testing equipment, all of which are at an industry-leading level, fully capable of comprehensive performance testing for pressure instruments.
Our company boasts a seasoned research and development team consisting of over 70 mid-level and senior professionals who are committed to crafting high-quality, reliable pressure gauges, thermometers, gas pressure regulators, welding and cutting torches, and other related products.
Our pressure gauges are certified with the Type Approval Certificate for Measuring Instruments, and our company has achieved certifications in international quality, environmental, and occupational health and safety management systems, along with ISO measurement management, Korean Industrial Standards (KS), Chinese Intellectual Property Standards, and EU CE Certification.
Our diverse product line serves critical roles in defense, aerospace, shipbuilding, machinery, petrochemical, metallurgy, power generation, textiles, food, and pharmaceutical industries. It includes a wide array of pressure gauges, regulators, high-purity gas reducers, and welding tools, totaling over a hundred varieties and two thousand models, forming a comprehensive product system that caters to a broad customer base.
With an extensive network of over 400 sales and service centers across more than 30 provinces, cities, and autonomous regions, our products are also exported globally to markets in Europe, the Americas, Russia, Canada, South Korea, Southeast Asia, and beyond.
Production Line
3 Pressure Gauge Production Line
Gas Regulator Production Line
Processing Area
Overpressure Testing Area
Welding Area
Packing
QC & R&D Team
Exhibition
Delivery
FAQ:
1. The Quality of Our Products
Q: How is the quality of your pressure gauges ensured?
A: Every single one of our pressure gauges is subjected to a stringent testing process, including Bourdon tube overpressure tests, finished product overpressure tests, 100% inspection before leaving the factory, and random inspections on each batch. We are committed to ensuring that every pressure gauge meets the highest quality standards.
2. Price
Q: What pricing can we expect for your products?
A: Our team has over ten or even twenty years of rich experience in the pressure gauge industry, and we strive to provide customers with high-quality products with high cost-effectiveness. Our pricing reflects both the high quality of our products and the rationality of the market.
3. OEM Services
Q: Do you provide OEM services?
A: Yes, over the years, we've handled many OEM orders from globally renowned companies. Our extensive experience ensures that we can meet a diverse range of OEM requirements with precision and high quality.
4. Delivery
Q: What are your delivery times?
A: Our delivery schedule is prompt, with a turnaround of approximately 30 days for existing models. We prioritize efficient production timelines without compromising on quality.
5. Service
Q: What after-sales service do you offer?
A: We aim for long-term trade cooperation, so we always provide the best after-sales service. We understand that each situation is unique. Therefore, we are open to discussing and agreeing upon the most suitable form of compensation on a case-by-case basis to ensure your satisfaction.
6. Special Orders:
We welcome orders with special requirements for our products. Our R&D team is ready to meet your specifications with precision and care.
