Industrial Emulsifying Machine Mayonnaise Production Line Mayonnaise Making Machine Vacuum Emulsifying
| US$8,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AVE
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid, Cream and Lotion
Application Area
Cosmetic
Certification
CE
Condition
New
Mixing Drum Shape
Cylinder
Stirring Type
Spiral
Working
High Speed Mixer
Material Processed
Chemicals, Food, Cosmetic
Weight (Kg)
650
Power (Kw)
3
Voltage
120V/220V/380V/440V
Key Selling Points
Multifunctional
Applicable Industries
Hotels, Garment Shops, Building Material Shops
Showroom Location
Thailand
Marketing Type
Ordinary Product
Function
Mixing, Homogenizing, Emulsion
Core Components
Motor, Gear, Pressure Vessel, Gearbox, Pump, Beari
Material
SUS304, SUS316L
Homogenizer
High Shearing Rotor and Stator Homogenizing
Discharge
Tilting Discharge and Bottom Outlet
Control
Buttons/PLC Control
Warranty
One Year
Transport Package
Wood Case
Specification
2200*650*2200mm, 650KG
Trademark
Ailusi
Origin
China
HS Code
8479820090
Production Capacity
100sets/Month
Product Description

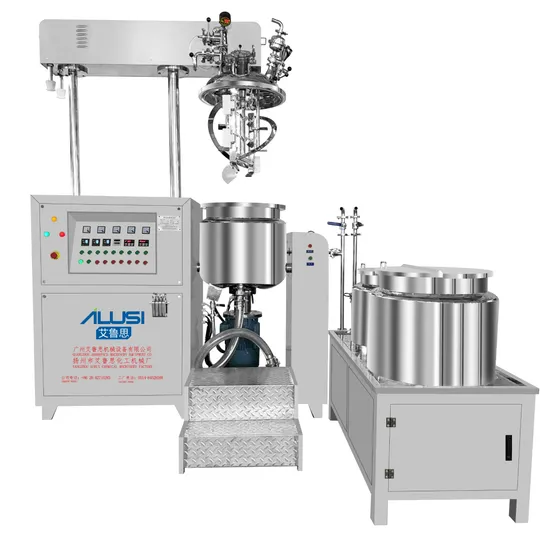

AILUSI MachineryManufacturer of Cosmetic | Food | pharmaceuticals|Daily Chemical industrial | GMP StandardProduct DescriptionHydraulic lifting vacuum emulsifying mixer:
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory . Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, toothpastes, etc. having extremely small particles for chemical, cosmetics, food industries.
Standard configuration
* Emulsifier, water phase tanks, oil phase tank *Vacuum pumps and sync solenoid valves *emulsifier and material filter *Hydraulic lifting system and mixing system*Stainless steel platform*Inverter and electrical control boxWorking Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
Vacuum Mixer Homogenizer means when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect.
Detailed Photos
Specification
| Model | Volume | stirring motor(KW) | Homogenizer(kw) | Hydraulic system(kw) | Vacuum pump |
| AVE-5L | 5L | 0.37 | 0.75 | 0.37 | 0.37 |
| AVE-10L | 10L | 0.55 | 1.1 | 0.37 | 0.37 |
| AVE-20L | 20L | 0.75 | 1.5 | 0.37 | 0.55 |
| AVE-30L | 30L | 1.1 | 2.2 | 0.37 | 0.55 |
| AVE-50L | 50L | 1.5 | 3 | 0.55 | 0.75 |
| AVE-100L | 100L | 2.2 | 4 | 0.75 | 1.1 |
| AVE-200L | 200L | 3 | 5.5 | 1.1 | 1.5 |
| AVE-300L | 300L | 4 | 7.5 | 1.5 | 1.5 |
| AVE-500L | 500L | 5.5 | 11 | 2.2 | 2.2 |
| AVE-1000L | 1000L | 7.5 | 15 | 3 | 3 |
| AVE-2000L | 2000L | 11 | 18.5 | / | 4 |
| AVE-3000L | 3000L | 15 | 22 | / | 5.5 |
| AVE-5000L | 5000L | 18.5 | 30 | / | 7.5 |
Packaging & Shipping
