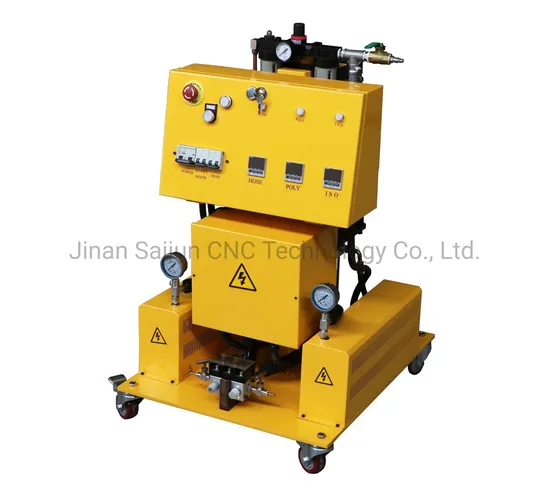

PU Polyurethane Injection Machine Fd-311A

Product Description

Polyurethane spray/injection foaming machine FD-311A

The FD-311A pneumatic driven proportioning unit is of advanced and compact design.It is specially aimed at the applications of polyurethane foam in place.Its particular configuration facilities easy access to all its components, simplifies the control functions and significantly reduces the maintenance work.
Heating System
The heating system consists of two separate independent block heaters,Independent rapid heating to target temperature.
Proportioning Pumps
The system is including two positive displacement piston pumps, driven by a pneumatic motor.
Hose Heating System
The hose heating system is designed with 1000W each 15 meters that allows the heating of up to 90m.
Recirculation System
Recirculation of the two components allows a faster achievement of preset temperatures at the heaters before starting to spray and during temporary shutdowns.
Product Description
1.This product can be produced in two modes: quantitative filling and ordinary spraying and filling. The quantitative filling accuracy can reach 2 ml. It can be used for fish buoy or other small polyurethane molds.
2.Electronic components and seals are all imported brands, which are stable and not easy to break after long-term use.
3.The pipeline has voltage protection to ensure the safety of electricity use.
4.The machine has a leakage protector.
5.Spray gun, heated hose can be used with G/R/A/C/O.
6.Small, light and easy to operate, classic model, the product has been sold stably for 15 years, supports 110v 220V single-phase voltage.
7.Suitable for heat preservation, mold making, quantitative filling, best-selling overseas.
8.Streamlined structure without sacrificing quality. Product warranty for 3 years.

Product Parameters

Project	FD-311A
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	13.8MPa (138 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
0utput	2-10kg/min
Gun Type	Spray/Injecting
Total power	8000W
Voltage	110V/230V 1-ph / 3-phs 380V/400V 3-ph
Machine size	870mm * 700mm * 1150mm
Gross weight	200KGS
Net weight	180KGS

Standard configurations
1.Slef-cleaning spray gun 1 unit 2. Transfer pump 2 unit 3.Heated hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.


Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience
