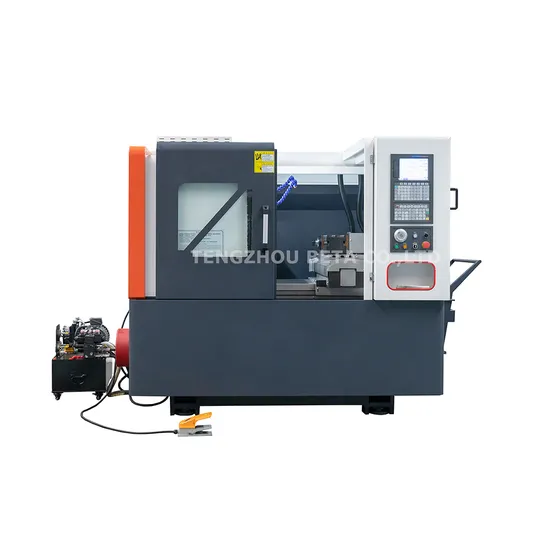

GSK Servo 460mm Linear Guideway 5.5kw Motor Flat Bed CNC Lathe

Product Description

GSK Servo 460mm Linear Guideway 5.5kw Motor Flat Bed CNC Lathe Model H46
Standard accessories:
Flat bed structure, Taiwan linear guideway,
Max.swing over bed 460mm,
Spindle bore diameter 56mm,
Max. workpiece length 330mm,
Spindle motor power 5.5kw,
Spindle frequency converter speed adjustment,
CNC controller GSK
4-way electric toolpost,
No tailstock,
automatic coolant system and lubrication system

Model	H46
Max. swing over bed	Φ460 mm
Max. workpiece length	330 mm
Spindle bore	Φ56mm
Spindle speed	3500 rpm
Spindle motor power	5.5 kw
X/Z axis travel	360 mm, 330 mm
X/Z axis rapid feeding speed	15/15 m/min
X axis motor	GSK servo motor
Z axis motor	GSK servo motor
Guideway	Taiwan Linear Guideway
Toolpost	4-way electric toolpost
N.W.	2200 kg
Machine dimension	2335x1815x1605mm

This flat bed CNC lathe is mainly used to process various shaft and disk parts. It can turn various threads, arcs, cones and internal and external surfaces of rotating bodies, and can meet the speed requirements of high-speed chips of Ferrous and nonferrous metals. Suitable for efficient, large-scale, and high-precision processing of rotating parts in industries such as automobiles, motorcycles, electronics, aerospace.
1.1 The CNC lathe adopts an electromechanical integrated design, with beautiful appearance, reasonable structure, low noise, and high positioning accuracy. Widely used and easy to operate, it can automatically complete the internal and external circles, grooves, end faces, spherical surfaces of various parts, as well as thread processing of various male and British manufactured cylinders and cones.
1.2 The numerical control system is programmed with ISO international code, manually input by keyboard, equipped with RS232 communication interface, power failure protection and various self diagnosis functions.
1.3 The spindle system has good rigidity. The spindle adopts variable frequency and stepless speed regulation. The spindle has a large aperture and can be equipped with complete accessories. Suitable for complex parts of various shapes, long shafts, and disk parts.
1.4 The bed has high stiffness, and the bed guide rail adopts Taiwan linear slide rail, which has the characteristics of high accuracy and efficiency.
The 1.5 machine tool adopts servo motor drive for longitudinal and transverse cutting, and precision ball screw drive.
1.6 The structural stiffness and transmission stiffness of the machine tool are higher than those of ordinary lathes, with high power utilization rate, suitable for high-precision and high-speed cutting.
1.7 The tool holder adopts a row tool holder, which is convenient for cutting and does not require tool replacement.
1.8 CNC lathe operation is flexible and centralized, with good comfort.
