Factory Direct Salepu Injection Moulding Machine

Product Description

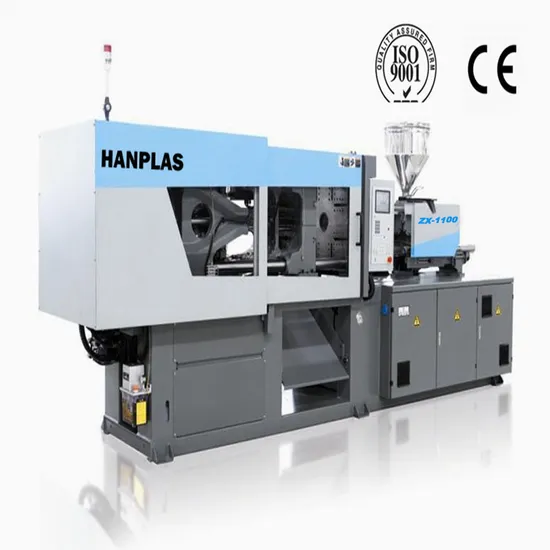

Zhengyue Factory Direct SalePu Injection Moulding Machine
Features:
User friendly: Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
Precision: high optimistic mechanical structure with high-tech controller, greatly increase machine service life and precise.
Speedy: High injection speed reducing cycle time.
Durable: Thicker platens to add strength, free from deforming molds.
Stable: dual cylinder injection, perform stability and reliability.

ZX-1100	Injection Unit Date		A	B	C
	Screw diameter	mm	110	120	130
	Screw L/D ratio	/	22	20.2	18.6
	Theoretical shot volume	cm3	4847	5768	6769
	Shot weight(PS)	g	4459	5307	6228
	Injection rate	g/s	845	1005	1180
	Max.screw speed	rpm	110
	Clamping Unit
	Clamping force	KN	11000
	Toggle stroke	mm	1200
	Space bettween tie bars	mm	1150x1100
	Min.mold thickness	mm	500
	Max.mold thickness	mm	1200
	Hydraulic ejection stroke	mm	350
	Hydraulic ejection force	KN	215
	Others
	Hydraulic system pressure	Mpa	16
	Pump motor	kw	35+35+35
	Heating capacity	kw	68
	Oil tank capacity	L	1900
	Machine dimensions	m	13x2.7x3.4
	Machine weight	Ton	48

Dimension:
Zhengyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhengyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
